Hydrocyclone
In irrigation systems, it is the filter that catches sand particles before they enter the system. Generally used in deep well pump stations and open waters, hydrocyclones are effective in separating stones, gravel, sand, and other particles coming from the pump from the water.
What to Consider When Choosing a Hydrocyclone
- Working Principle
- Application Areas
- Features
Hydrocyclones, which are used as the primary filter element in filtration systems, can be selected by considering the three main factors mentioned above.
Hydrocyclone Working Principle

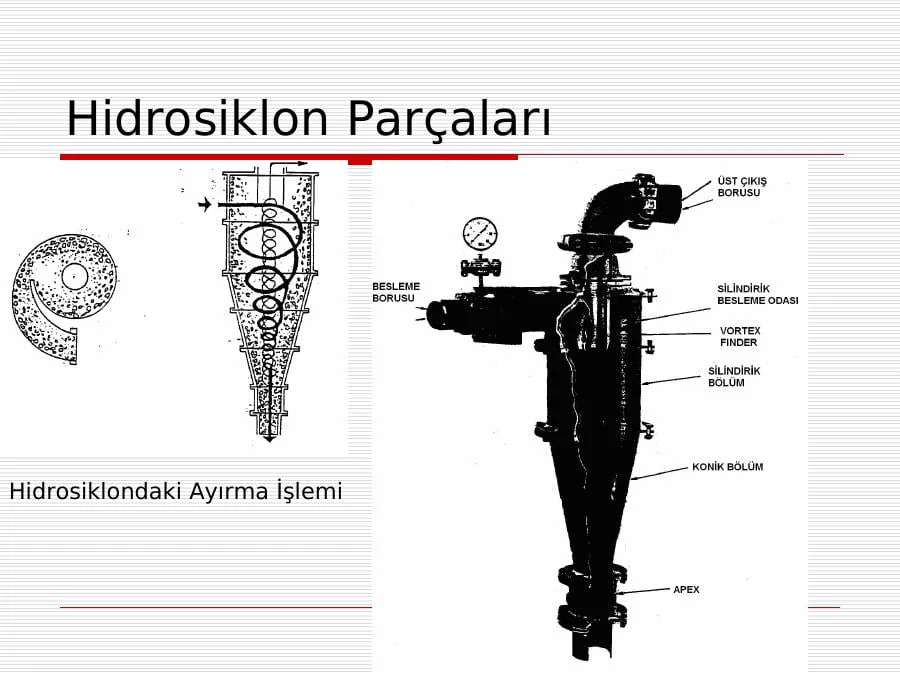

Water enters from the upper part of the hydrocyclone toward the wall and descends by rotating along the wall. Then, the water rises from the center upwards, and since sand particles are heavy, they remain at the bottom. Water cleared of sand is delivered to the system through the top of the hydrocyclone. At the highest point of the hydrocyclone outlet, an air release tool (air valve) is placed to discharge air. The sand accumulated at the bottom is cleaned at certain intervals by opening the drainage valve in the reservoir during irrigation, and by opening the reservoir lid when irrigation is not being performed.
Hydrocyclone Application Areas
- In the filtration of reserve waters such as deep wells
- In the filtration of waters containing sand, gravel, and particles heavier than water
- In the pre-filtration of media, disc, and screen filter systems
- In agricultural drip and micro-irrigation systems
- In the separation of solid particles larger than 200 mesh diameter
Hydrocyclone Features
- Provides easy use and maintenance with its simple structure.
- It is long-lasting thanks to its coating structures.
- It operates entirely on the cyclone principle.
- Performs an effective filtration (separation) process at minimum pressure loss.
- Single or modular systems can also be used in application areas of different diameters.
- It can be used in two different models: manual and automatic.
- In automatic models, it can clean itself automatically without water interruption.
