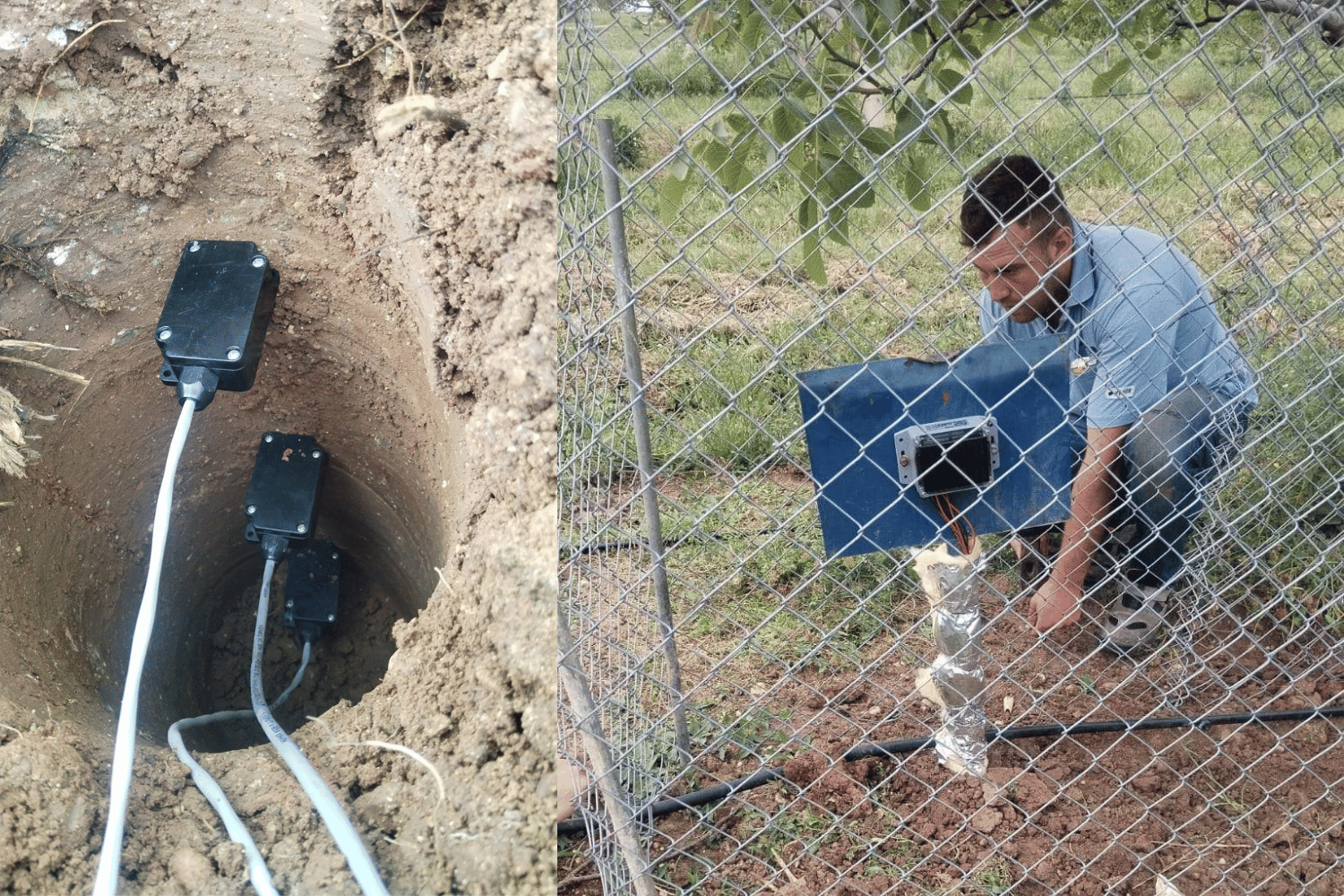

Lora-Soil Moisture Sensor

General Features:
1. It has sensors for measuring soil moisture, ambient humidity, and temperature.
2. With the internal battery, it can send data at certain intervals (once every 5 minutes), and continuously with an external and solar panel.
3. It has a 12-24V 250mA external power input.
4. It takes a reading once every 5 minutes and transmits the information to the center.
5. There is no data loss in case it is turned off and on.
6. The device has Lora modulation and LoraWan protocol with EU-868 MHz frequency band and 14dB output power.
7. It has an external antenna connection.
8. Configuration processes can be done via the system.
9. Energy status, operating status, and alarm status can be monitored with the LEDs on it.
10. When the device is not sending data, it operates in Ultra Low Power mode and does not consume unnecessary energy.

Application Areas:
1. Remote sensor monitoring
2. Pressure sensor, Flowmeter, Meter, etc. reading systems
3. AMR systems
4. Automation systems
5. Scada systems
6. Remote monitoring systems

Technical Specifications:
1. Frequency Range: 433/490 MHz or 868 / 915 MHz(Customizable:137~1020MHz )
2. Sensitivity up to -139dBm @Lora
3. EU433,CN470-510,CN779-787,EU863-870,US902-928,AU915-928,AS923,KR920-923
4. Maximum output power: 20 dBm
5. 13mA@receiver mode
6. Sleep current <200 nA 7. Data transfer rate: @FSK,1.2-300 Kbps 8. @Lora TM, 0.018-37.5 Kbps 9. Lora TM, FSK, GFSK & OOK Modulation mode 10. Built-in ESD Protection 11. 127 dB Dynamic Range RSSI 12. Packet engine up to 256 bytes with FIFO and CRC 13. Hopping frequency 14. Built-in temperature sensor and low battery indicator 15. Excellent blocking immunity 16. Operating Temperature Range：-40 ~ + 85 °C 17. Low Power Current 4uA 18. Max TX Current 120mA

Box Contents:
1. Lora-Soil Moisture Sensor
2. 3V6 Lithium Battery (Optional) 1 piece
