Digitize Your Center Pivot Systems: The Future of Modern Agriculture

Are you getting maximum efficiency from the center pivot irrigation systems you have invested in for your large agricultural lands? As technology advances rapidly, the limitations of traditional pivot systems may be affecting your production and profitability. By digitizing your existing center pivot systems, you can both save water and energy and benefit from the advantage of full remote control.

Esular prepares your pivot systems, which have been serving for years, for new generation agricultural production processes by strengthening them with smart technologies.

What is Center Pivot and Why is Digitization Necessary?

Center pivot irrigation systems are modern irrigation equipment that move circularly around a central point and automatically irrigate large agricultural areas. These systems, invented by Frank Zybach in 1948, are used today on millions of hectares of land worldwide.

Center Pivot Usage in Turkey: There are more than 15,000 active pivot systems in our country. They see intensive use especially in large agricultural basins such as the Konya Plain, Şanlıurfa GAP region, Adana, and around Ankara.

However, traditional pivot systems have significant limitations:

Requirement for Manual Control: You must physically go to the field to start, stop, or make adjustments to the system. This means both loss of time and fuel costs.

Delay in Failure Detection: When a failure occurs in the pivot system, it can take hours or even days to notice it. During this time, water and energy are wasted, and there is also a risk of damage to the plants.

Inefficient Water Use: Unnecessary irrigation is performed because soil moisture levels are unknown, or conversely, plant stress occurs due to insufficient irrigation.

Energy Waste: Unnecessary pump operations occur because there is no pump and pivot synchronization.

Lack of Data: You do not have access to critical data such as how much water you use, how much specific areas are irrigated, or the system's operating history.

Center Pivot Digitization with Esular: What Changes?

Esular smart irrigation technologies eliminate all these problems by being integrated into your existing center pivot systems and transform your system into a new generation irrigation tool.

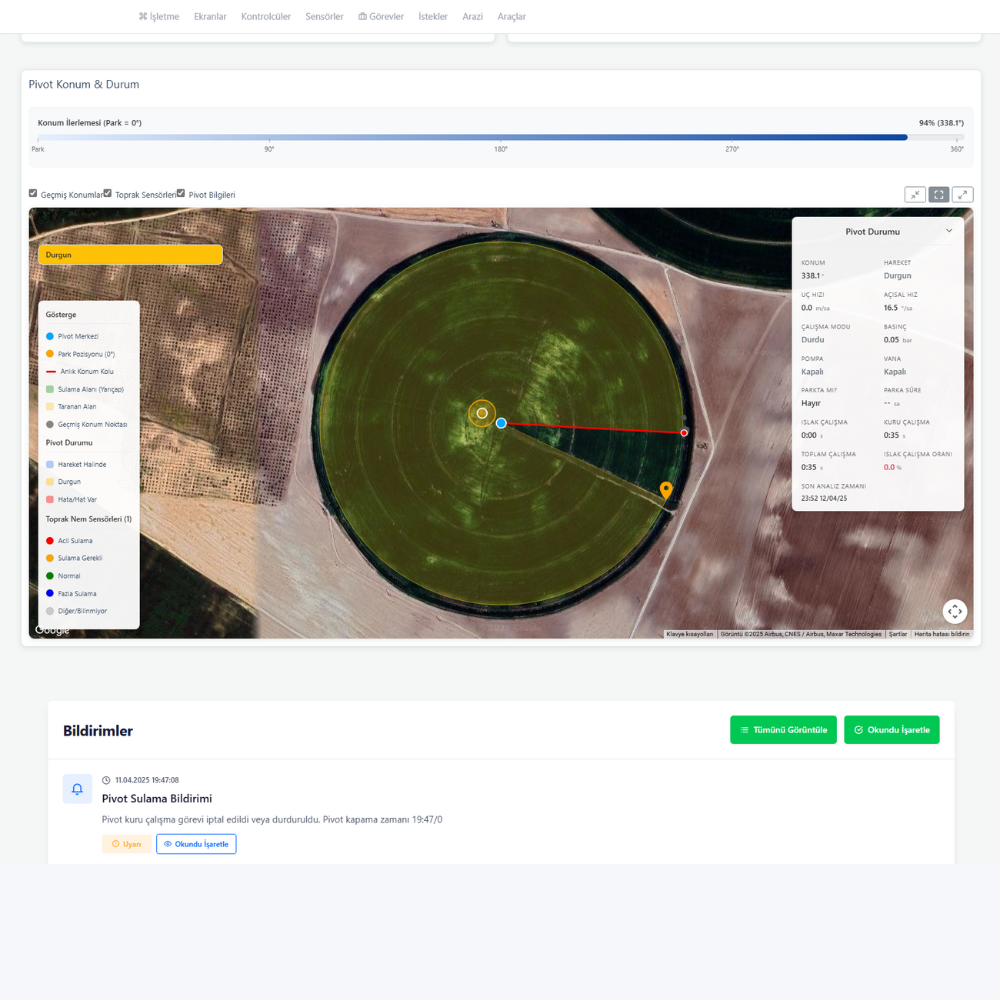

1. Real-Time Location Tracking and Map View

The Esular system detects the current location of your pivot with GPS technology and displays it on an interactive map in the mobile application or web panel.

What Do You See?

• Instant location and movement direction of the pivot
• Irrigated area (in green)
• Remaining area (in gray)
• Estimated completion time
• Instant speed and rotation angle

In this way, you can monitor the status of your pivot instantly without going to the field. For example, you can look at your phone while having breakfast to see that the pivot is still working properly, or you can check it in your vehicle while going to work.

2. Full Remote Control: Management from Anywhere

With the Esular mobile application, you can control your pivot from anywhere in the world:

Start / Stop: Start or stop the pivot with a single touch. You no longer need to travel for hours to get to the field.

Speed Adjustment: Adjust the water application amount by remotely changing the irrigation speed. Slow down for wetter irrigation, speed up for lighter irrigation.

Direction Change: Perform sectoral irrigation with forward and backward direction control. If you only want to irrigate a specific area, stop the pivot at the desired angle.

Timing Programs: Plan irrigation hours in advance. For example, to take advantage of the night tariff, start the system automatically at 11 PM and stop it at 6 AM.

3. Smart Well-Pivot Synchronization

One of Esular's most groundbreaking features is the full synchronization of well pumps with pivot systems.

How It Works? When the pivot stops, the well pump stops automatically; when the pivot starts working, the pump kicks in. Thanks to this simple logic:

Energy Savings: Unnecessary pump operation is eliminated. A 20-30 percent reduction in your monthly electricity bill is achieved.

Pump Life Extends: Since there is no idle running, the life of the pump and electric motor is extended, and maintenance costs are reduced.

Dry Running is Prevented: If the well runs out of water or the pressure drops, the system stops automatically. This prevents damage to the pump.

Multiple Well Support: If you have more than one well, the Esular system automatically selects the most efficient well combination. For example, it can prioritize wells with high flow rates or distribute the load of the wells in a balanced way.

Real Example – Experience of a Producer in Konya: A farmer using 4 center pivots on a 400-decare land saved 8,000 TL in electricity per month with Esular well-pivot synchronization. On an annual basis, this corresponds to 96,000 TL.

4. Smart Irrigation with Soil Moisture Sensors

The biggest loss of efficiency in pivot systems is that when and how much irrigation to perform is based on estimation. Esular solves this problem fundamentally.

Wireless Soil Moisture Sensors: Wireless soil moisture sensors placed at different points of your fields measure the actual moisture level in the root zone and transmit this data to the system.

Multi-Depth Measurement: Provides soil profile analysis by measuring simultaneously at depths of 30-60-90 cm. Even if the surface soil is wet, you can detect if there is drought in the deep layers.

Automatic Irrigation Decision: The system automatically starts irrigation when the soil moisture falls below a certain threshold and stops when the target moisture level is reached.

Water Savings: Unnecessary irrigation is completely eliminated. In field applications, an average of 35-40 percent water savings has been achieved.

5. Pressure and Flow Tracking: Monitor System Health

Water pressure and flow in the pivot line are critical parameters. The Esular system continuously monitors these values:

Pressure Sensors: Pressure measurements are taken at the beginning of the line, the end of the line, and at critical points. If the pressure is low, there may be a pipe blockage or leak; if it is high, there is a problem with the pump settings.

Flow Measurement: You see how much water you use instantly and in total. You can receive monthly, seasonal, and annual water consumption reports.

Early Failure Detection: Unexpected pressure or flow changes arrive as instant notifications. Thus, you can intervene before a small problem grows.

6. Weather Integration

The Esular system automatically optimizes irrigation programs using local weather forecasts:

Rain Forecast: If rain is predicted within the next 24-48 hours, the system does not perform automatic irrigation.

Temperature and Wind Effect: The irrigation amount is increased on days with high temperatures and low humidity, and evaporation loss is taken into account in windy weather.

Evapotranspiration (ET) Calculation: Plant water consumption is calculated with scientific formulas and irrigation is optimized accordingly.

Real Project Examples with Esular Pivot Digitization

Dalaman Center Pivot Project

In the project we carried out in Muğla Dalaman, we integrated the existing pivot irrigation system with our digital infrastructure. Within the scope of the project, we included soil moisture sensors, pool level sensors, and pressure sensors into the system along with our central station.

Project Details:

• Area: 280 decares of agricultural land
• Product: Corn and sunflower rotation
• 2 center pivot systems
• 3 well pumps
• 8 wireless soil moisture sensors
• 2 pool level sensors
• 6 pressure sensors

Our users can monitor the amount of water in agricultural irrigation pools instantly. Instant notifications are received when the water level falls below or exceeds the desired level, and automatic tasks prevent situations such as pool overflow or water loss.

Konya Plain Large Scale Pivot Management

We installed an Esular central control system in an agricultural enterprise using 8 center pivot systems on a 1200-decare land in the Konya Plain.

System Features: All pivots are managed from a single platform. Which pivot will work at what moment, which well it will be fed from, all these are optimized by the central software.

Advantages Provided: Energy consumption is distributed in a balanced way while 7 pivots are working at the same time. When there is a problem with one pivot, the others are not affected.

Center Pivot Digitization Process: How Do We Start?

Digitizing your existing pivot systems is not as complex as you think. As Esular, we follow a simple 6-step process:

1. Field Analysis and Needs Assessment

Our expert team comes to your land and examines your existing pivot systems. All technical details such as how many pivots there are, which brand and model, the electrical infrastructure, the status of the wells, and the soil structure are examined. Your needs and expectations are heard.

2. Project Design and Proposal

A digitization project specific to your needs is prepared. All details such as where the sensors will be placed, the location of the control units, and the communication infrastructure are planned. A special price offer is presented to you.

3. Hardware Procurement and Installation

All equipment is procured and our professional installation team steps in. During installation, your existing pivot system can continue to work; there is no production interruption. The average installation time is between 2-5 days.

4. Software Integration and Test

After hardware installation is complete, software integration is performed. All sensors are calibrated, control scenarios are set, and the system undergoes detailed tests.

5. Training and Commissioning

Detailed training on system usage is given to you and your team. All topics such as how to use the mobile application, how to manage alarm notifications, and how to receive reports are taught practically.

6. Continuous Support and Monitoring

After the system is commissioned, our 24/7 technical support service continues. If you encounter any problem, our Turkish support team assists immediately. Also, thanks to our remote system monitoring, we detect and solve potential problems before you even notice them.

Esular Center Pivot Digitization Products

Esular offers products and solutions specifically designed for the digitization of center pivot systems:

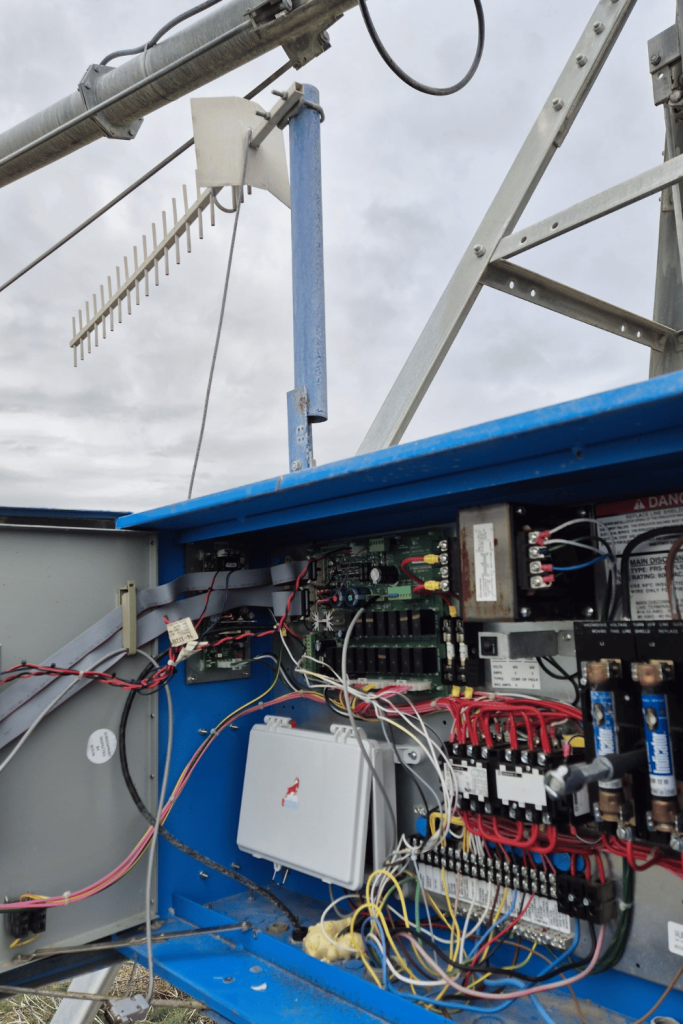

Pivot Control and Monitoring Unit

This unit, mounted on your center pivot system, monitors and controls all parameters of the pivot. It includes GPS location tracking, speed sensor, angle sensor, and wireless communication module.

Features:

• IP67 waterproof case
• Operating temperature between -20°C and +70°C
• Solar panel + rechargeable battery
• LoRaWAN / GSM / RF multi-communication support
• Compatible with all pivot brands

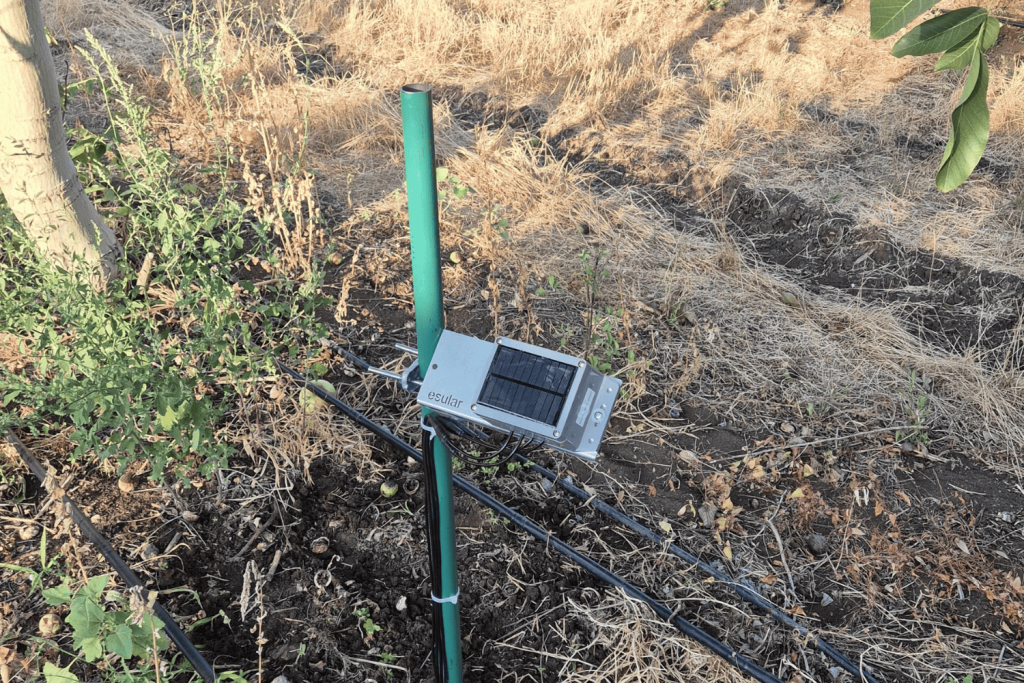

Wireless Soil Moisture Sensors

Wireless sensors placed at different points of your pivot area provide real-time soil moisture data. https://store.esular.com/store/ProductEmbed?slug=kablosuz-pilli-toprak-nem-sensoru

Smart Pump and Well Control System

Remotely manage your wells and pumps, run them in synchronization with pivot systems.

Main Features:

• GSM-based remote control
• Pressure and flow monitoring
• Overcurrent, phase loss protection
• Energy consumption tracking
• Automatic start/stop scenarios

For detailed information: Wireless Well and Pump Control System

Pivot Digitization Cost and Return Period

The cost of center pivot digitization investment varies according to the size of the system and the desired features. However, generally for a medium-sized pivot (200-400 decares):

Basic Package (Remote Control): Only pivot start/stop and location tracking features. The most economical digitization solution.

Standard Package (Sensor Integration): Including soil moisture sensors, pressure tracking, well synchronization. The most popular option.

Premium Package (Full Automation): Weather integration, multi-pivot management, advanced analytics, VRI (Variable Rate Irrigation) support.

Return Period: Considering the savings provided, the average return period is between 1.5-3 years. This period varies according to your water and energy costs, land size, and product type.

Example Calculation (300 Decare Pivot):

• Annual water savings: 40,000 TL
• Annual energy savings: 28,000 TL
• Labor savings: 18,000 TL
• Additional income from yield increase: 35,000 TL
• Total annual benefit: 121,000 TL

Frequently Asked Questions

Will my existing pivot system be interfered with?
No, Esular digitization solutions are integrated with minimum interference to your existing pivot system. The mechanical structure of your system does not change; only the control and monitoring infrastructure is added.

Which pivot brands is it compatible with?
Esular systems have a universal design and are compatible with all center pivot brands (Valley, Zimmatic, T-L, Bauer, etc.).

Does it work in areas without internet?
Yes, the Esular system uses long-range wireless technologies such as LoRaWAN and RF. It works seamlessly even in areas where the GSM signal is weak or non-existent.

How long does installation take?
Installation for a single pivot usually takes 1-2 days. For multi-pivot systems, this time may increase to 3-5 days. Your system can continue to work during installation.

How is technical support provided?
We have a 24/7 Turkish technical support line and remote system access. Most problems can be solved remotely; our field team steps in when necessary.

Conclusion: Digital Transformation is No Longer a Choice, But a Necessity

In today's world where water resources are gradually decreasing, energy costs are increasing, and competitive conditions are getting tougher, it is becoming increasingly difficult to ensure sustainable success with traditional agricultural methods. Having modern irrigation systems like center pivot is a significant advantage, but if you do not strengthen these systems with digital technologies, it means you are not using your potential to the fullest.

With Esular center pivot digitization solutions:

• Control your pivots from anywhere in the world
• Provide water savings at a rate of 35-40%
• Reduce energy costs by 20-30%
• Get rid of unnecessary labor and fuel expenses
• Detect and intervene in failures instantly
• Increase efficiency and production quality
• Record and analyze all your data

Turkey's leading agricultural enterprises have already realized this transformation. It's your turn!

Price Warning: The prices mentioned in this article are the list prices as of the date the content was published. For current prices and campaigns, please visit the product pages or contact us. Prices may vary.
