How to Set Up an Automatic Irrigation System?
How to install an automatic irrigation system, how to install an esular smart irrigation and automatic irrigation system. In this article, we will share with you information on how to install our wireless and wired automatic irrigation solutions on the land in their most basic form. Our solution, which consists of wireless and battery-powered sensor and valve control systems, GSM central communication and central control units, can be easily dried in four basic practical steps. It is quite easy to apply pool filling systems with pressurized irrigation systems and pump-controlled systems.
Contents
- What is an automatic irrigation system?
- What are the components of an automatic irrigation system?
- Placement of the Central Communication and Control Unit
- Placement of the Pump Control Unit
- Wireless Valve Control Unit Connections
- Pool Level Sensor Connections
- Soil Moisture Sensor Connections
- Water Meter Connections
- Making Necessary Adjustments on the Mobile Application
- Activating the Automatic Pool Filling Feature
- Activating the Automatic Irrigation Feature
Otomatik Sulama Sistemi Nedir?
What is an automatic irrigation system? As esular, our most basic answer to this question is to minimize human intervention and ensure that the valves, pumps, sensors, etc. used for irrigation are managed automatically with software.
With our automatic irrigation and smart irrigation solutions, we offer equipment and technologies that provide automatic irrigation solutions in open agricultural areas, urban landscape areas, and golf courses, football fields, villas, hotels, etc.
In this article, we will talk a little about the components of an automatic irrigation solution and also provide some step-by-step information on how to set up an automatic irrigation system.

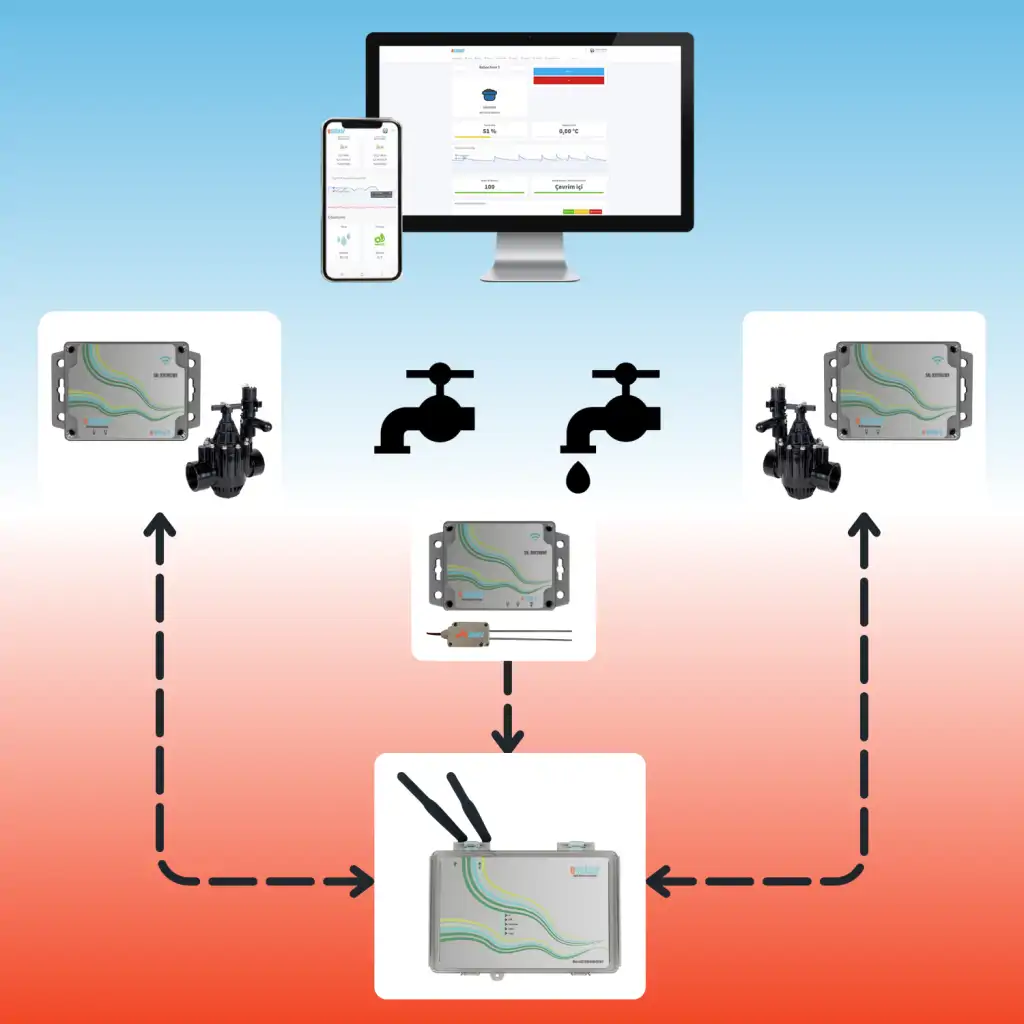

What are the Components of an Automatic Irrigation System?
Central Control and Communication Unit
The components of the automatic irrigation system are basically made up of 4 parts. The first component is the central communication and control unit that connects to the internet via GSM, Wifi or Ethernet, collects equipment information such as valves, pumps and sensors and transfers it to the cloud server. The most basic task of this unit is to manage the entire irrigation system, whether there is an internet connection or not, and to ensure that the system works correctly automatically. There are 3 different versions. The central control unit that controls valves, pumps and sensors directly with a cable, a short-distance wireless control unit up to 600 meters and a long-distance wireless control unit up to 10 km. We recommend the most suitable option for the irrigation area from these three different options.

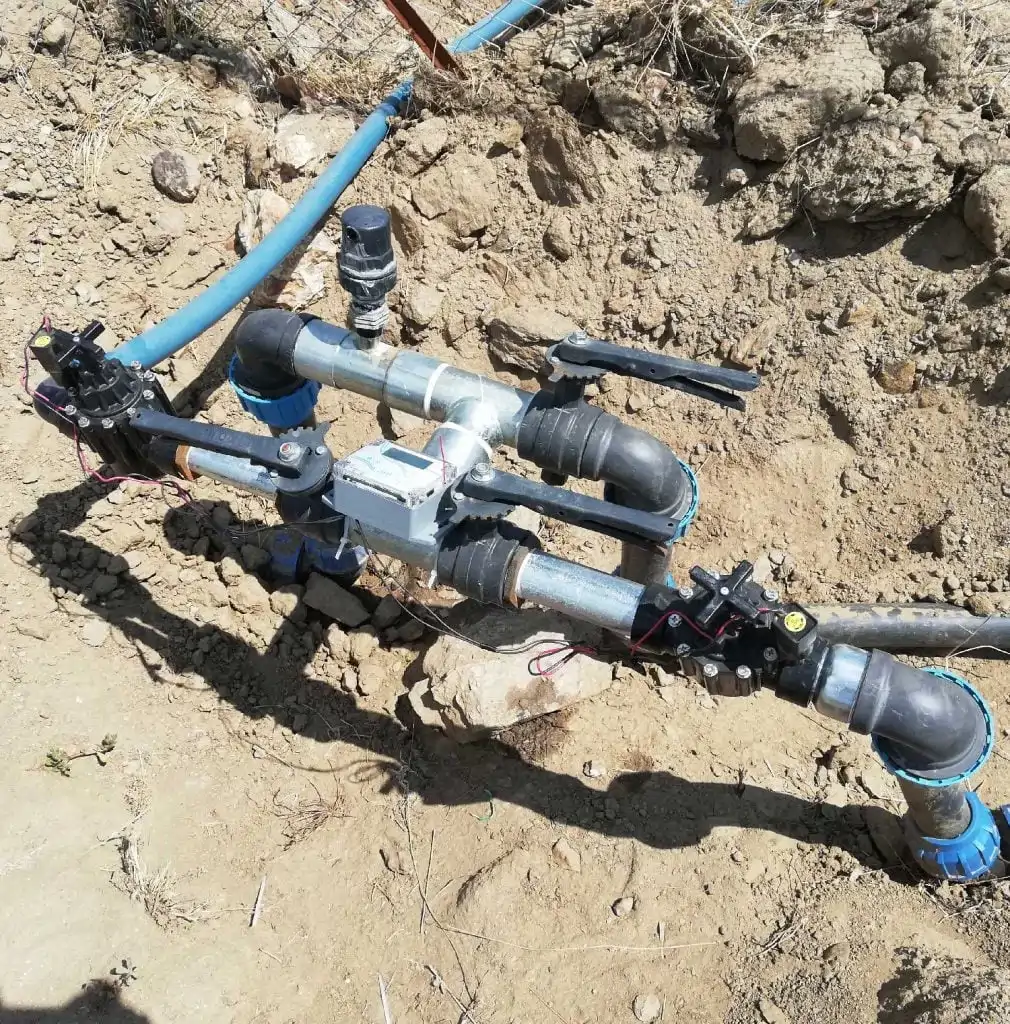

Wireless Battery Valve Control Unit
The second part of the system is the valve control unit that works wirelessly and with battery. Our device, which works with 9V latch solenoid valves, provides service with a range of up to 10 km and a battery life of up to 5 years. Our device, which has advanced features and outputs for up to 8 valves, can be added to optional inputs and outputs such as soil moisture, pressure and water meter pulse internally if desired.

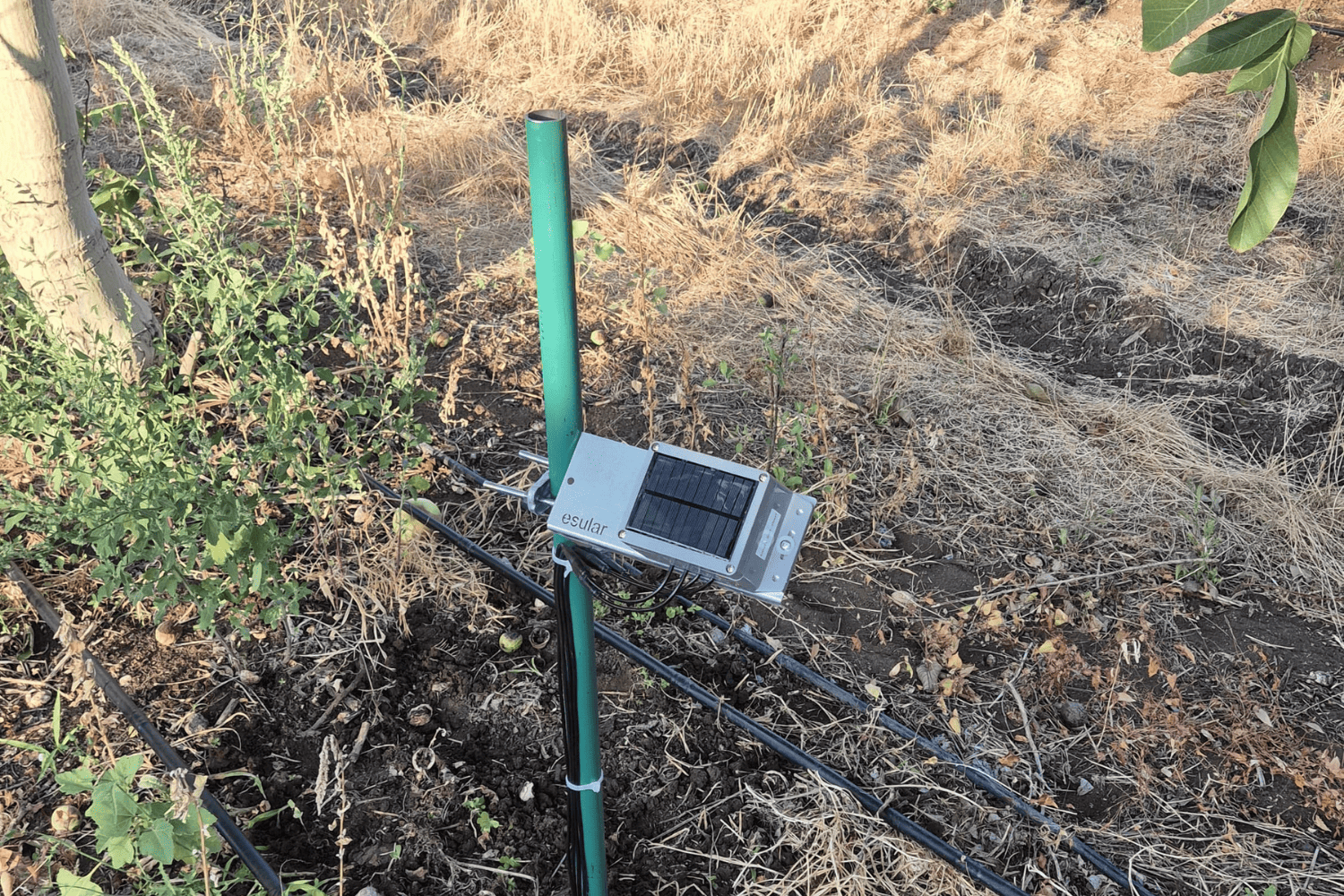

Wireless Battery Sensors

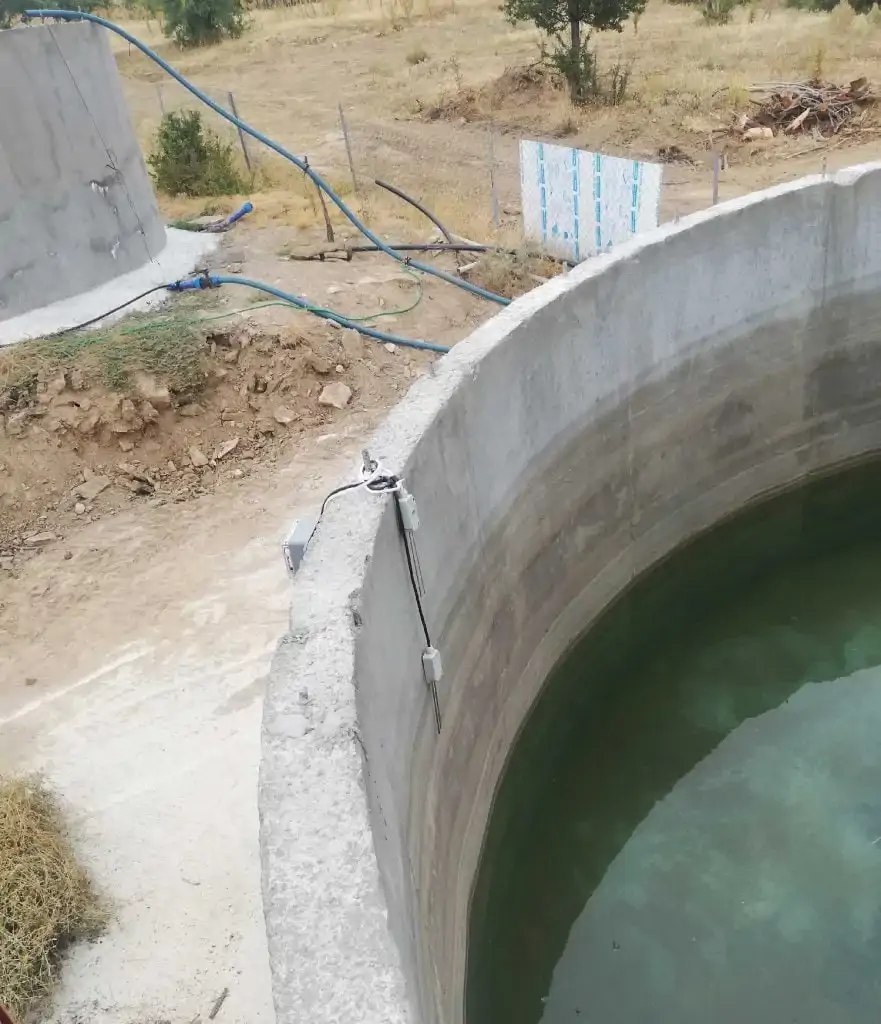

Another component of the system is the wireless and battery operated sensors such as water pressure, soil moisture, rainfall, pool level, ambient temperature and humidity. Thanks to these sensors, the entire irrigation process is automated and made smart, and irrigation is carried out.

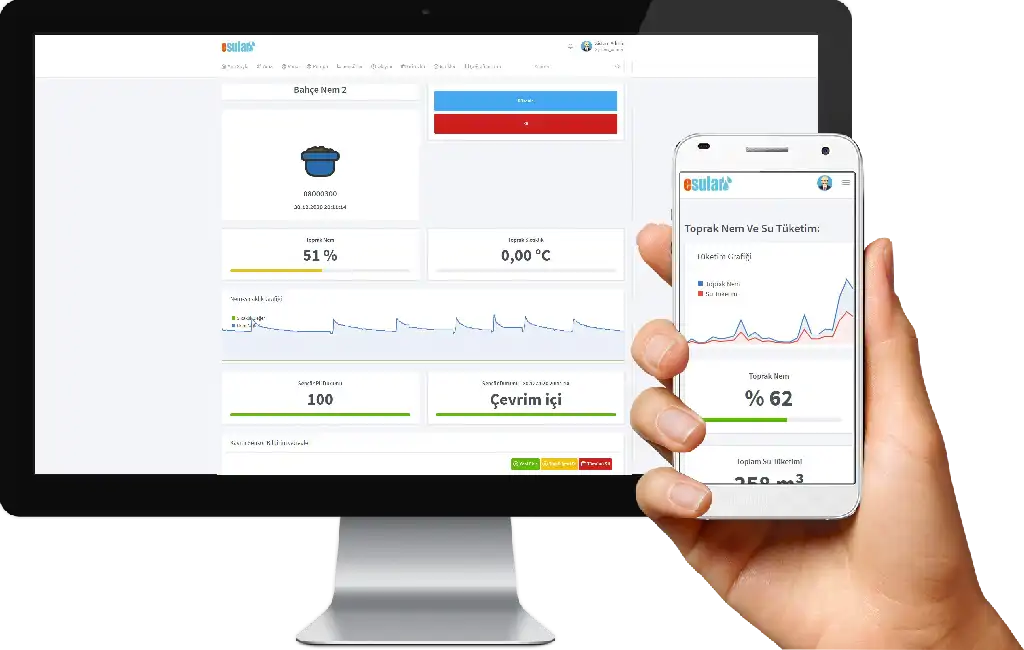

Cloud Based Web and Mobile Irrigation Application
The final system component is our cloud-based web and mobile application supported smart irrigation management software. With this software, you can manage the entire irrigation process from anywhere you want. With our application that has many automatic irrigation and smart irrigation management features, it is in your hands to effectively manage the entire irrigation process.
Esular Akıllı Otomatik Sulama Sistemi Uygulama Alanları
Su kaynağının kıt olduğu yerlerde damla sulama otomasyonu ile maliyetlerinizi azaltıyoruz. Kablosuz kontrol edilebilir hidrolik vanalar sayesinde, arazinin her bir noktasına eşit oranda su dağıtımı sağlanır ve hepsi tek bir noktadan kontrol edilir
Sera üretimi istenen düzeyde tutmak, ürün kalitesini iyileştirmek ve pH dengesini kontrol altında tutmak için modern seralarda sulama yönetimi tam otomatik hale getiriyoruz
Bütün tarım arazilerinizde kablolama ve harici güç kaynağına gerek kalmaksızın dünyanın en değerli kaynağını en verimli şekilde kullanmanızı ve yönetmenizi sağlıyoruz. İster sulama senaryonuzu belirleyin ister tam otomatik sulama yapın
Peyzaj sulamalarında vanaları akıllı hale getirerek daha verimli ve etkin sulama sağlıyoruz. Uzaktan kontrol edilebilir vanalar ve uzaktan güncellenen senaryolar ile tüm kontrol sizin elinizde
Golf ve futbol sahalarında debi ve basınç değerleri kontrol edilerek homojen bir sulama yapılması sağlanmaktadır. Bütün vana ve pompalar kablo çekilmeden uzaktan kontrol edilebilir
Akıllı Şehirler
Akıllı şehir uygulamalarında kablosuz ve 10+ yılı aşkın dahili piller ile çalışabilen sensörler ile sulama bölgelerinin zamanında ve istenildiği gibi sulanmasını sağlıyoruz. Yağmur yağdığında sulama yapan fıskiyelere artık son
