Greenhouse
Climate Control Systems
Our smart climate control solution, integrated with a mobile app and equipped with centralized management sensors. Manage your greenhouse climate from the palm of your hand!
Climate Control Products
Professional hardware solutions for greenhouse climate control
Window Control Unit
Gradual window opening/closing, temperature-dependent automatic control.

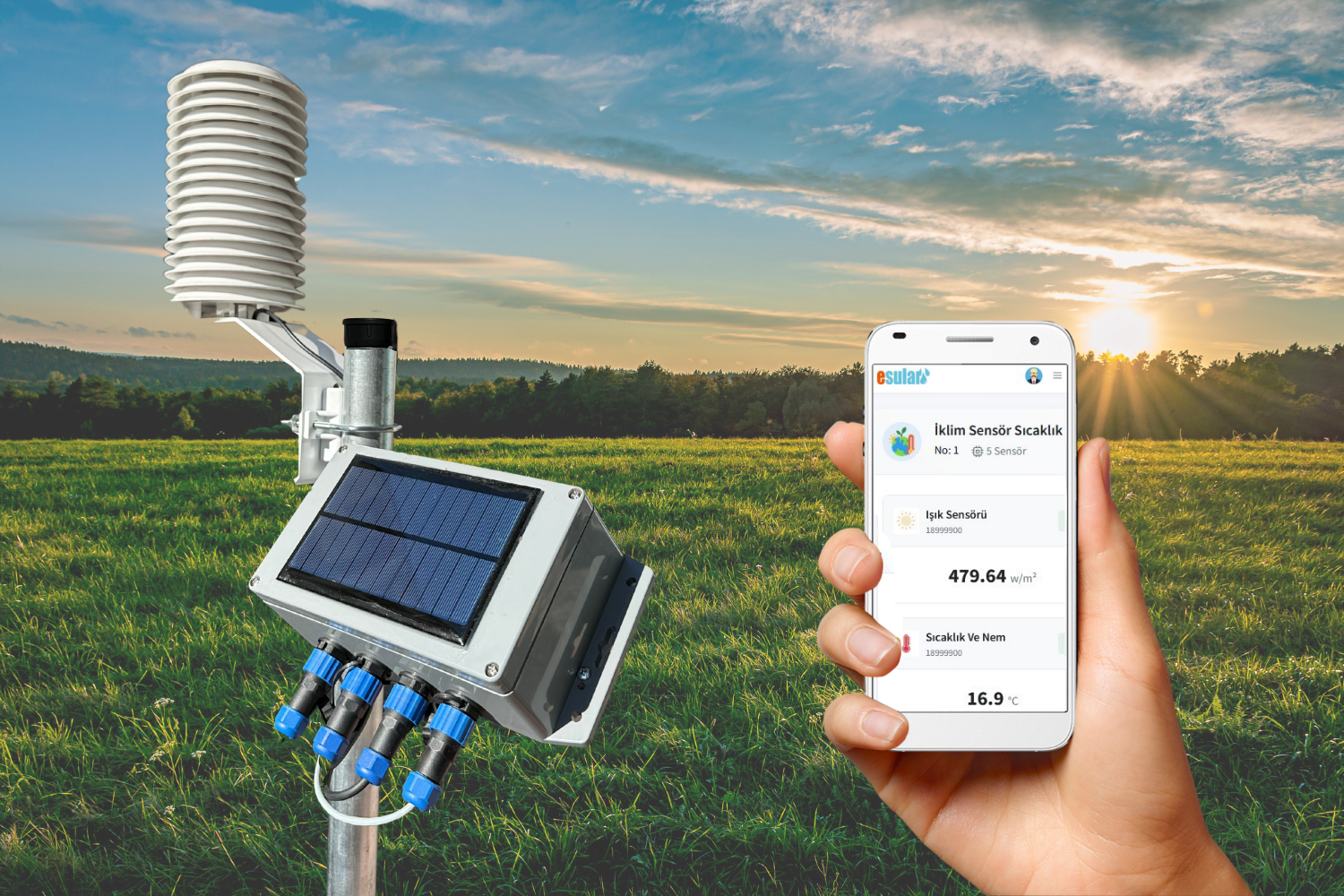

ReviewClimate Sensor
Solar-powered, ±0.2°C accuracy, 5-year battery life.
ReviewWindow Control Panel
AC motor control, mobile application, automatic mode.
ReviewFan Control
Smart management of circulation and ventilation fans.
ReviewClimate Control Solutions
Manage all climate parameters in your greenhouse from a single platform.
Roof Window Control
Automatic roof window operation. Control linked to temperature and rain sensors.
Side Curtain Control
Automatic control of ventilation curtains and insect nets. Wind-protected system.
Shading Curtain
Automatic shading based on light intensity. Energy saving and plant stress prevention.
Fan Control
PWM or on/off control of ventilation and circulation fans.
Cooling System
Control of pad-fan, fogging and high-pressure misting systems.
Heating Control
Integrated control of boiler, hot air blower, and floor heating systems.
System Features
| Motor Control | AC/DC motor driver, 0-10V, 4-20mA output |
|---|---|
| Maximum motor power | 2.2 kW / motor |
| Window/Curtain count | 128 independent groups (expandable) |
| Temperature Control | ±0.5°C precision, PID algorithm |
| Humidity Control | ±2% RH accuracy |
| Sensor inputs | Temperature, humidity, wind, rain, light |
| Communication | LoRaWAN, RS485, Ethernet, 4G |
| Remote Access | Web panel + Mobile application |
| Alarm system | SMS, email, push notification |
| Power Supply | 220V AC, UPS supported |
Automatic Climate Control
1. Data Collection
Sensors continuously measure indoor and outdoor temperature, humidity, wind, rain, and light data.
2. Analysis
Smart algorithms analyze collected data and calculate optimum climate conditions.
3. Control
The system automatically controls windows, curtains, fans, and heaters.
Greenhouse Climate Control and Automation Packages
Ready-made solution packages to suit your needs - including 2-year warranty and technical support
Basic Package
Economical starter solution for small and medium-sized greenhouses
Package contents
- F-Max Series Control Unit
- 2 Wireless Temperature-Humidity Sensors
- Remote Lighting Control
- Mobile and Web Application Access
- Mobile and Web Interface
- Instant Notifications and Alarms
- 1 km Communication Range
Advantages
Monitor your greenhouse's climate conditions from anywhere you want. Quick intervention possible thanks to instant notifications for abnormal temperature and humidity changes.
Technical Specifications
| Sensor Sensitivity | ±0.5°C, ±3% RH |
| Connection | GSM/WiFi |
| Battery Life | 2+ years |
| Protection Class | IP65 |
| Warranty | 2 Years |
Standard Package
Professional greenhouse management with automatic window control
Package contents
- F-Max Series Control Unit
- 2 Wireless Temperature-Humidity Sensors
- 1 Single Output Window Control Device
- Automatic Temperature Control
- M2M Communication Line Included
- 1 Year Application Fee Included
- Detailed Reporting and Analysis
Advantages
Optimum greenhouse climate with automatic window open-close control based on temperature. Increase your plant productivity by up to 25%!
Technical Specifications
| Window Control | 1 Automatic |
| Contact | M2M Line Included |
| App | Included |
| Communication Range | 1 km |
| Warranty | 2 Years |
Professional Package
Full automation solution for large-scale greenhouses
Package contents
- E Series Professional Control Unit
- 2 Wireless Temperature-Humidity Sensors
- Direct control of 2 windows
- Advanced Automation and Scenario Support
- Solar-powered battery operation
- M2M Communication Line Included
- 1 Year Application Fee Included
- Cloud-Based Data Storage
Advantages
The energy savings and production increase you will achieve with the E Series can mean significant additional profit in greenhouse operations. Contact us for a detailed analysis.
Technical Specifications
| Window Control | 2 Units Direct |
| Energy | Solar + Battery |
| Communication Range | 10 km |
| Protection Class | IP65 |
| Warranty | 2 Years |
