Wireless Battery-powered
Soil moisture sensor
Measure soil moisture, temperature, and EC at 4 different depths with LoRaWAN technology, 5-10 km range, and solar-powered battery. Up to 40% water savings provide.
Soil Moisture Sensor Images
Farklı açılardan sensörlerimizi inceleyin
Smart-Soil Soil Moisture Sensors
Choose the sensor model that suits your needs
Smart-Soil 3 Solar
Küçük ve orta ölçekli tarım alanları için ideal. 3 farklı derinlikte nem ölçümü.
- 30 - 60 - 90 cm depth
- Güneş paneli + 5000 mAh pil
- LoRaWAN 5 km menzil
- Moisture + temperature measurement
- IP68 su geçirmez
Smart-Soil 4 Solar
For professional and large-scale agricultural areas. Detailed analysis at 4 depths.
- 30 - 60 - 90 - 120 cm derinlik
- Güneş paneli + 5000 mAh pil
- LoRaWAN 10 km range
- Humidity + Temperature + EC measurement
- IP68 su geçirmez
- Advanced soil profile analysis
Why Esular Soil Moisture Sensor?
Reliable and long-lasting sensor technology designed for professional agriculture.
Multi-level Measurement
Individual moisture measurement up to 3-4 different depths. Understand your plant's real water needs in the root zone.
LoRaWAN Technology
Seamless communication in wide areas with 5-10 km wireless range. Long battery life with low power consumption.
Güneş Enerjili
Entegre güneş paneli ve 5000 mAh pil. Şarj veya pil değişimi gerektirmez, yıllarca kesintisiz çalışır.
IP68 waterproof
Fully waterproof design. Operates reliably in all weather conditions and during irrigation.
Çoklu Ölçüm
Toprak nemi, sıcaklık ve elektriksel iletkenlik (EC) ölçümü tek cihazda. Kapsamlı toprak analizi.
40% Water Savings
Doğru zamanda doğru miktarda sulama ile su ve enerjiden %40'a varan tasarruf sağlayın.

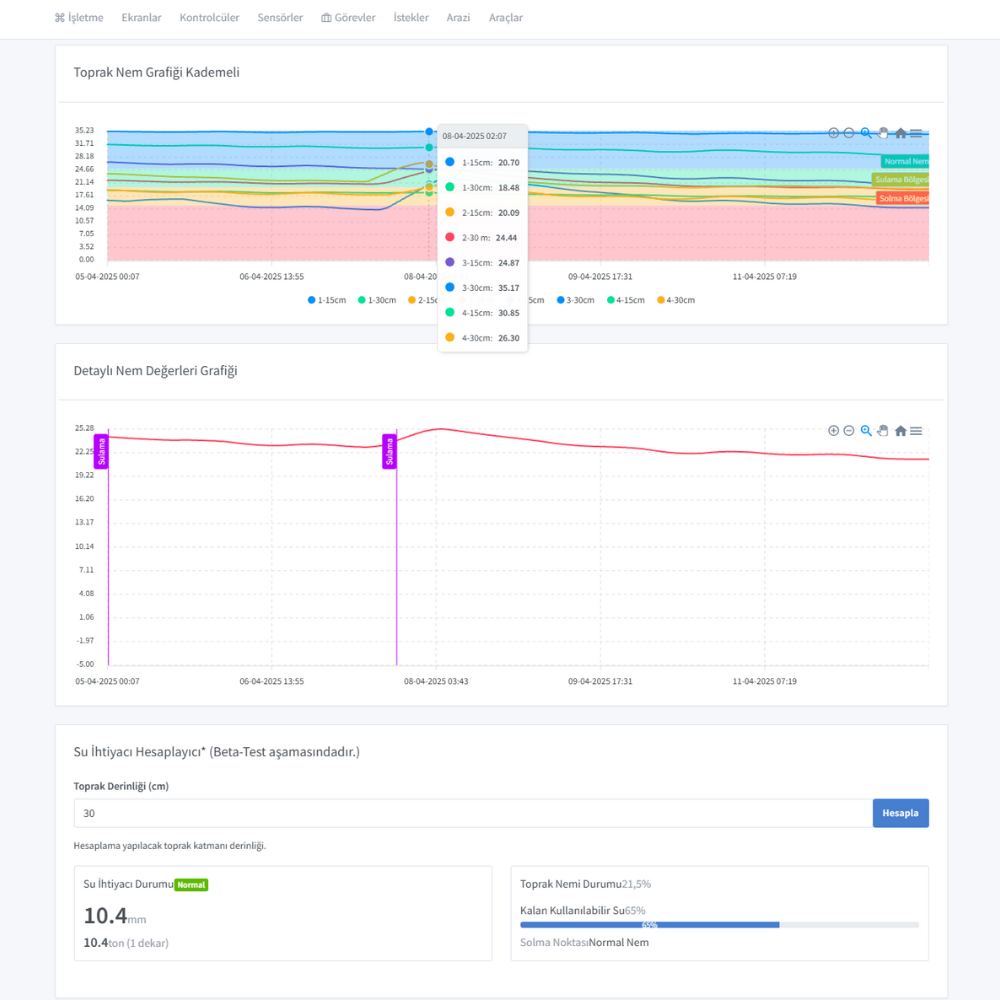

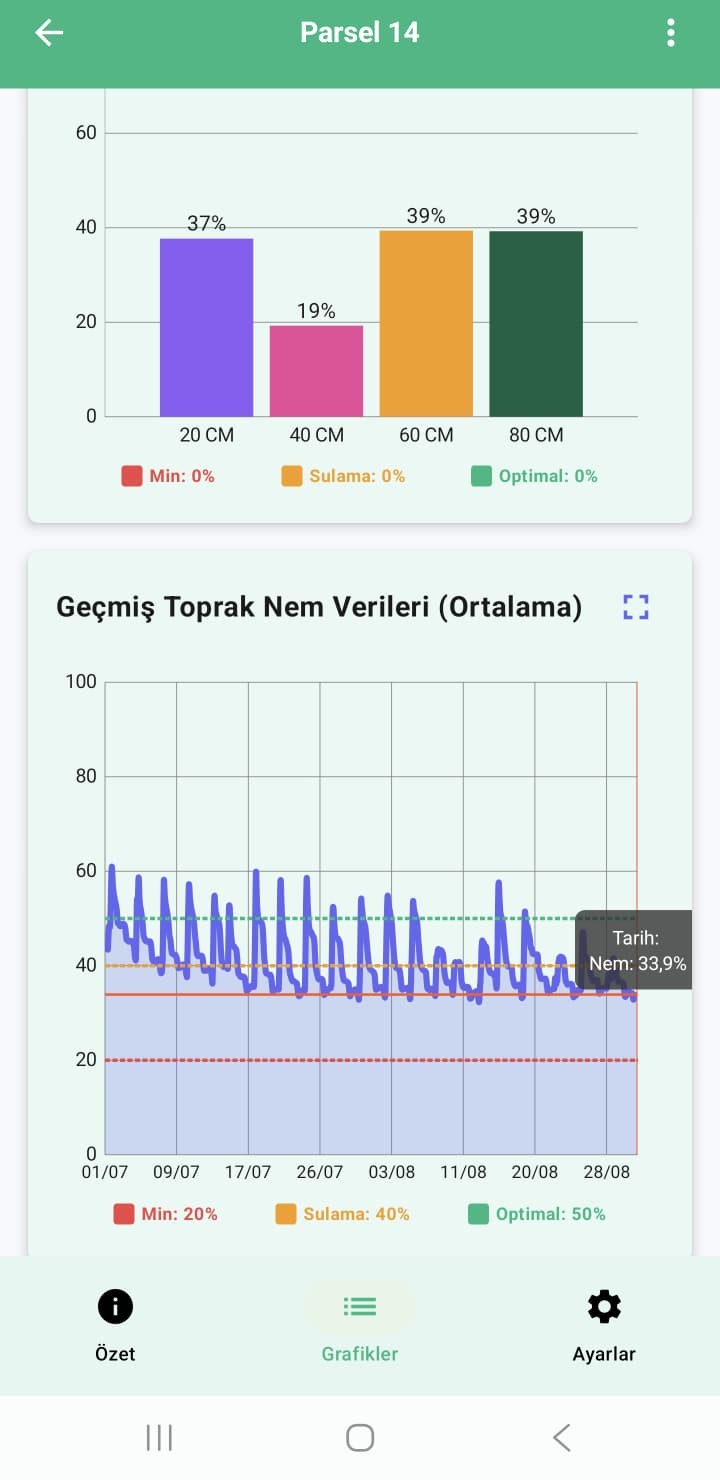

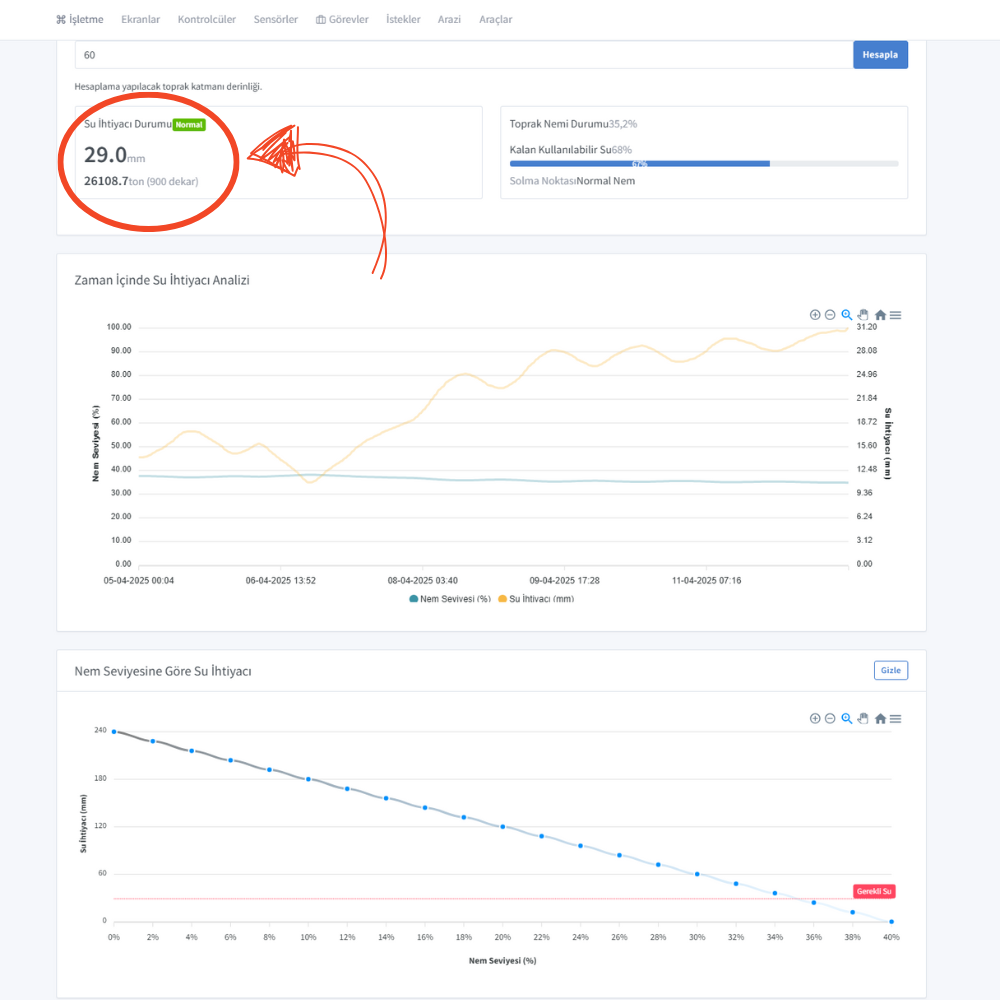

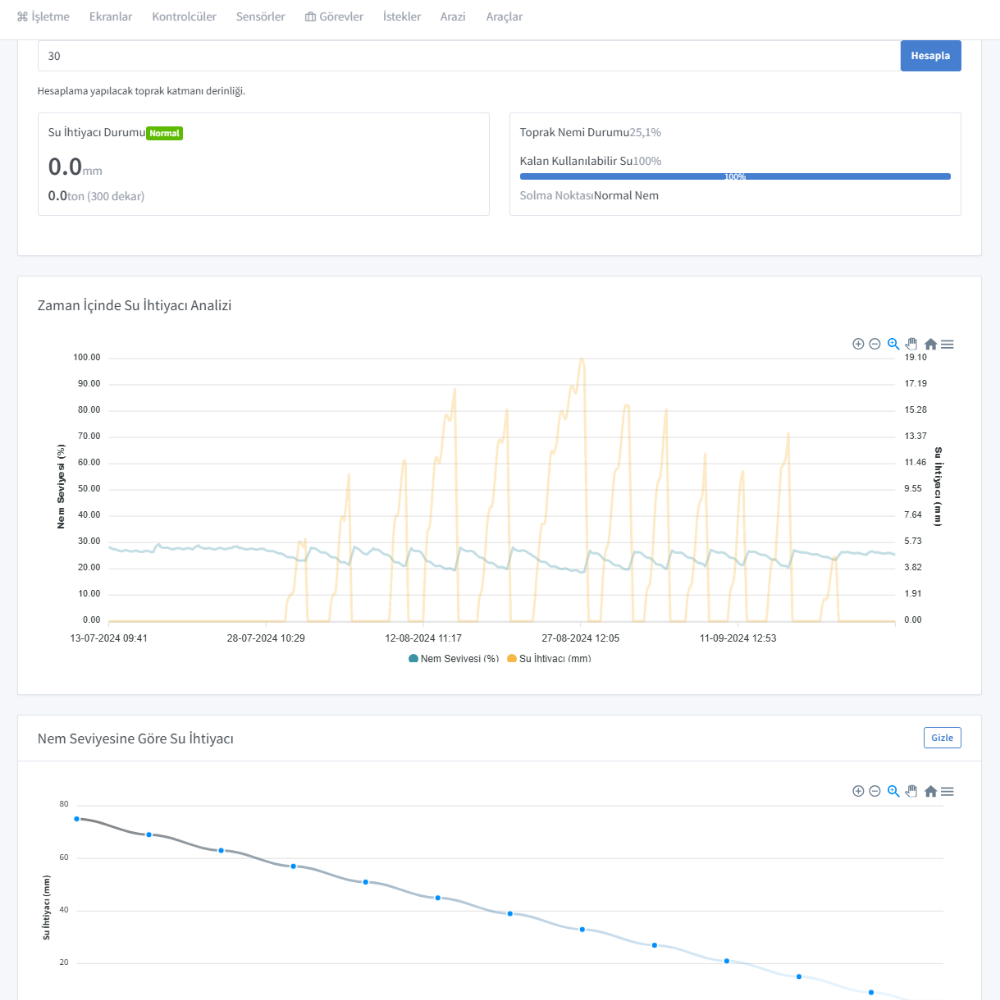

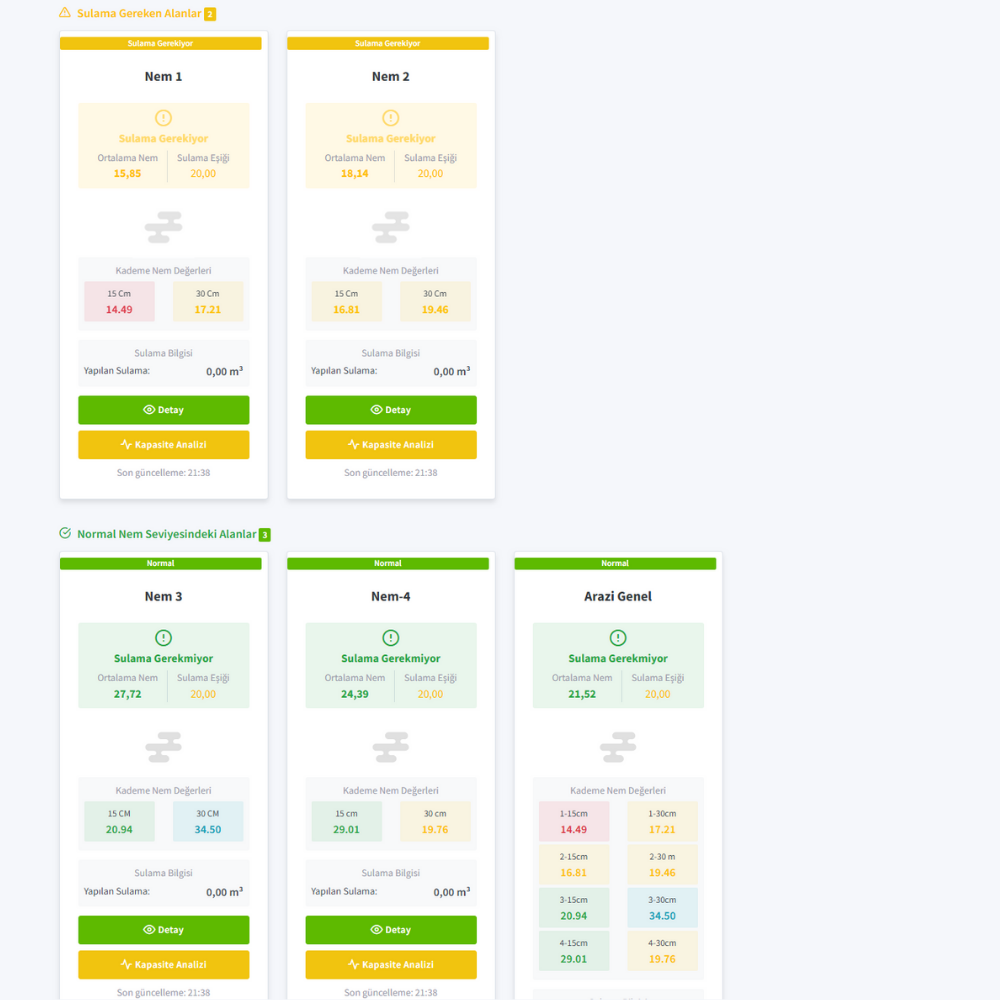

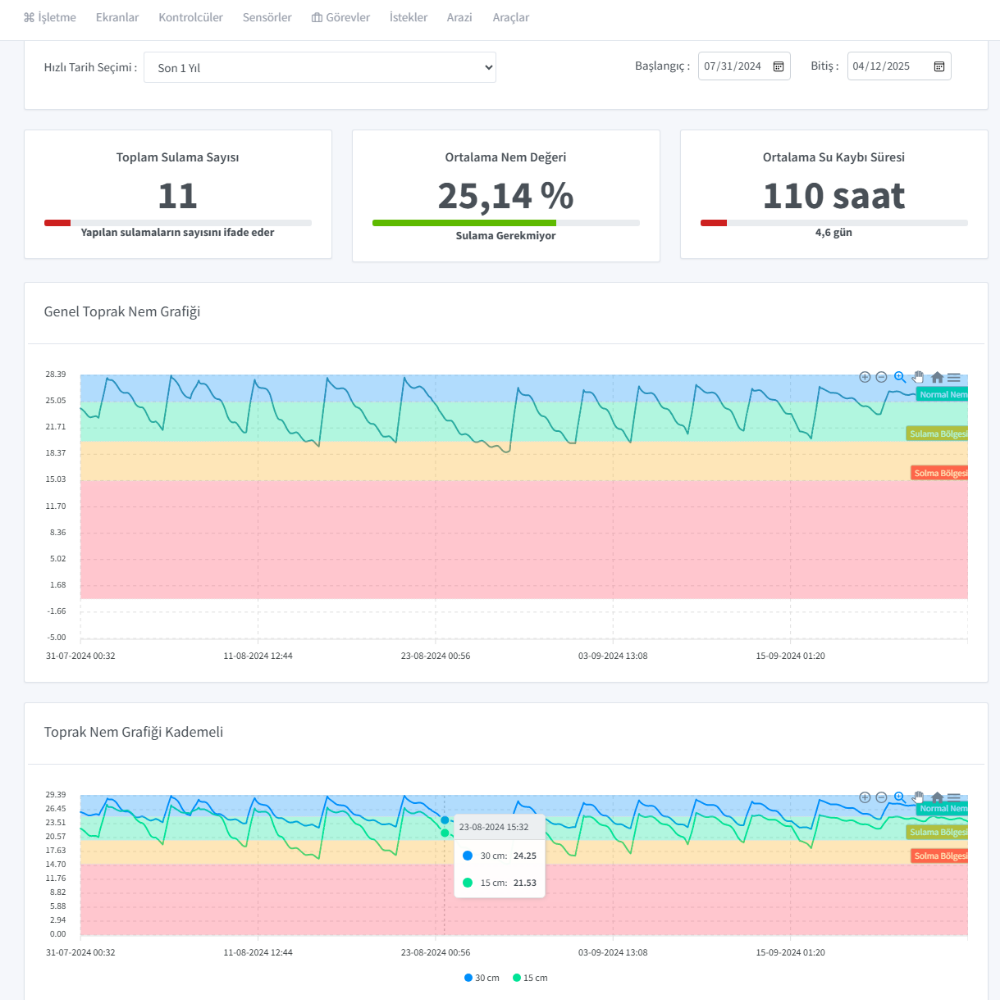

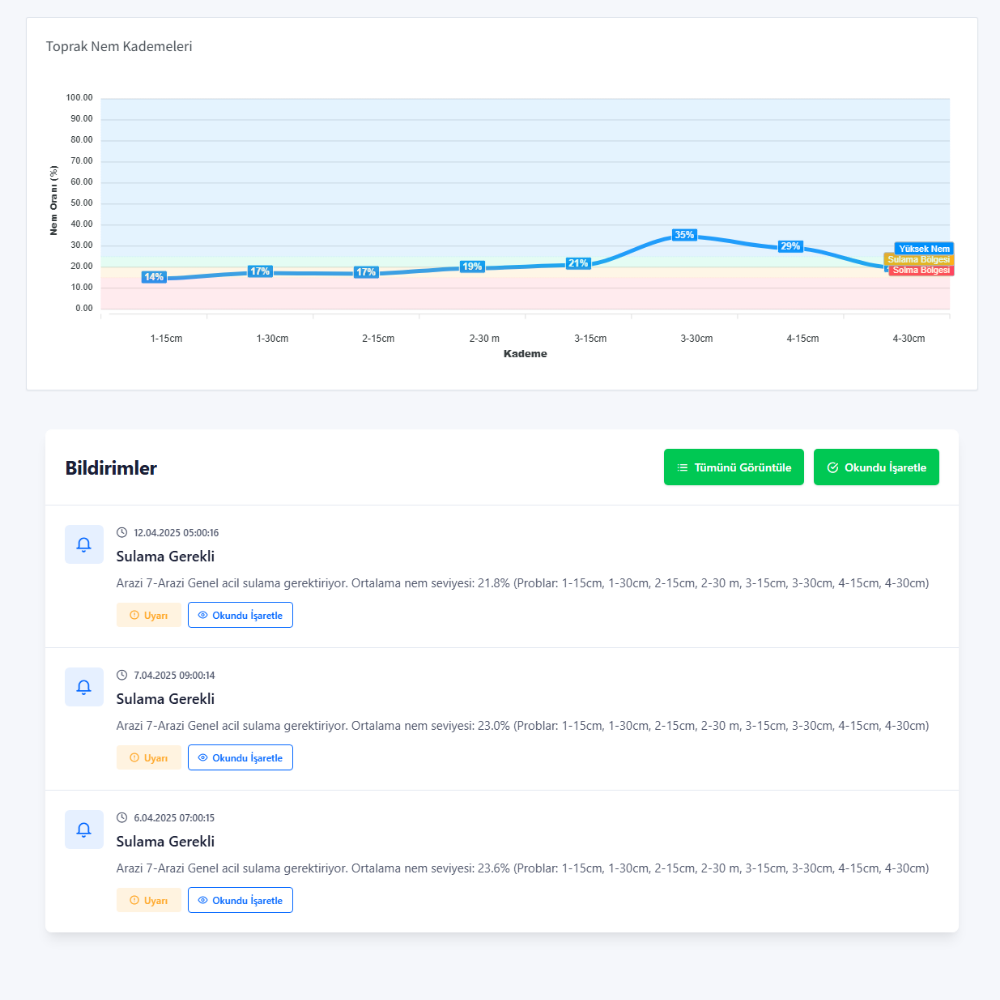

Application and Software Interfaces
Manage all your sensors from a single point with a user-friendly mobile and web application.

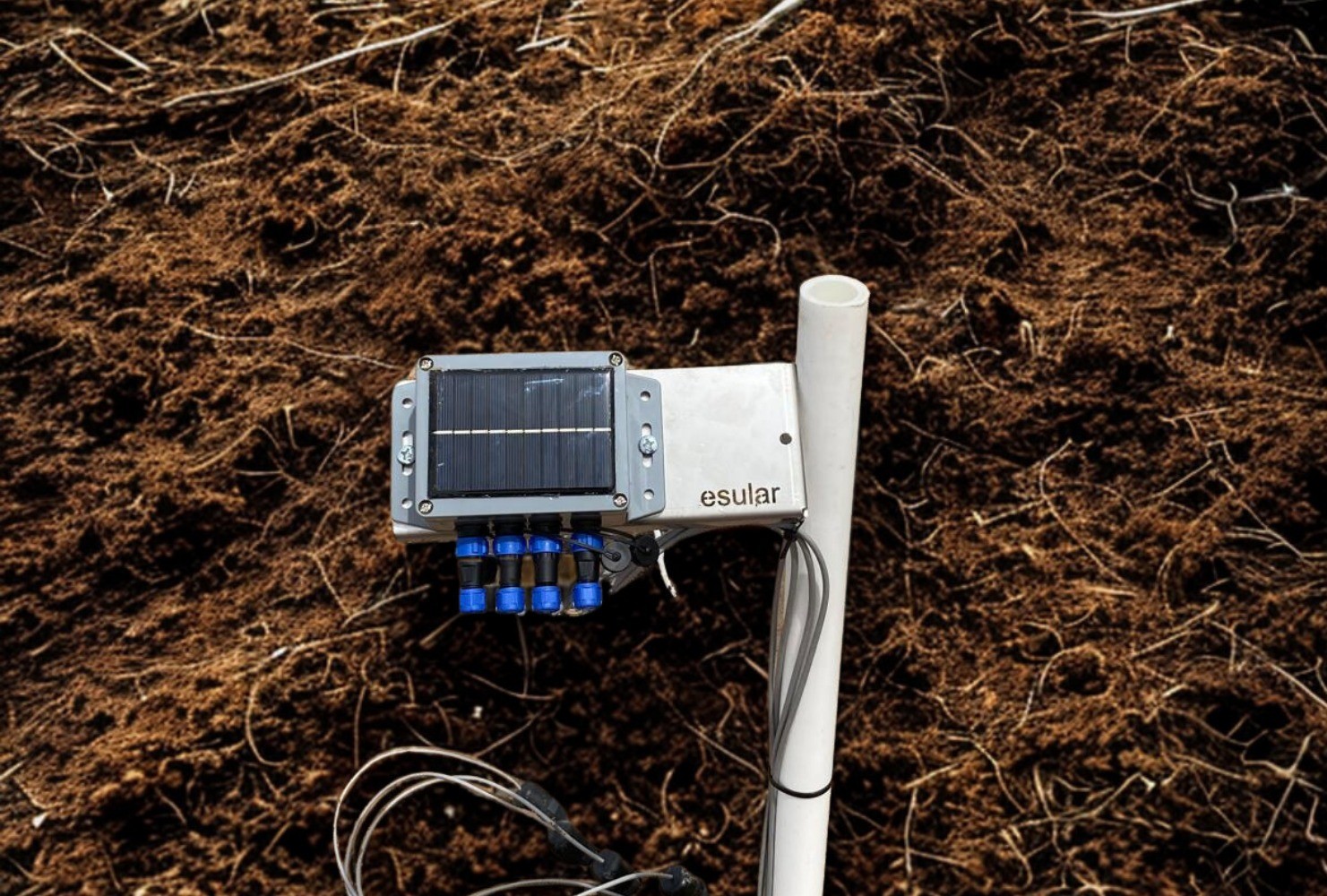

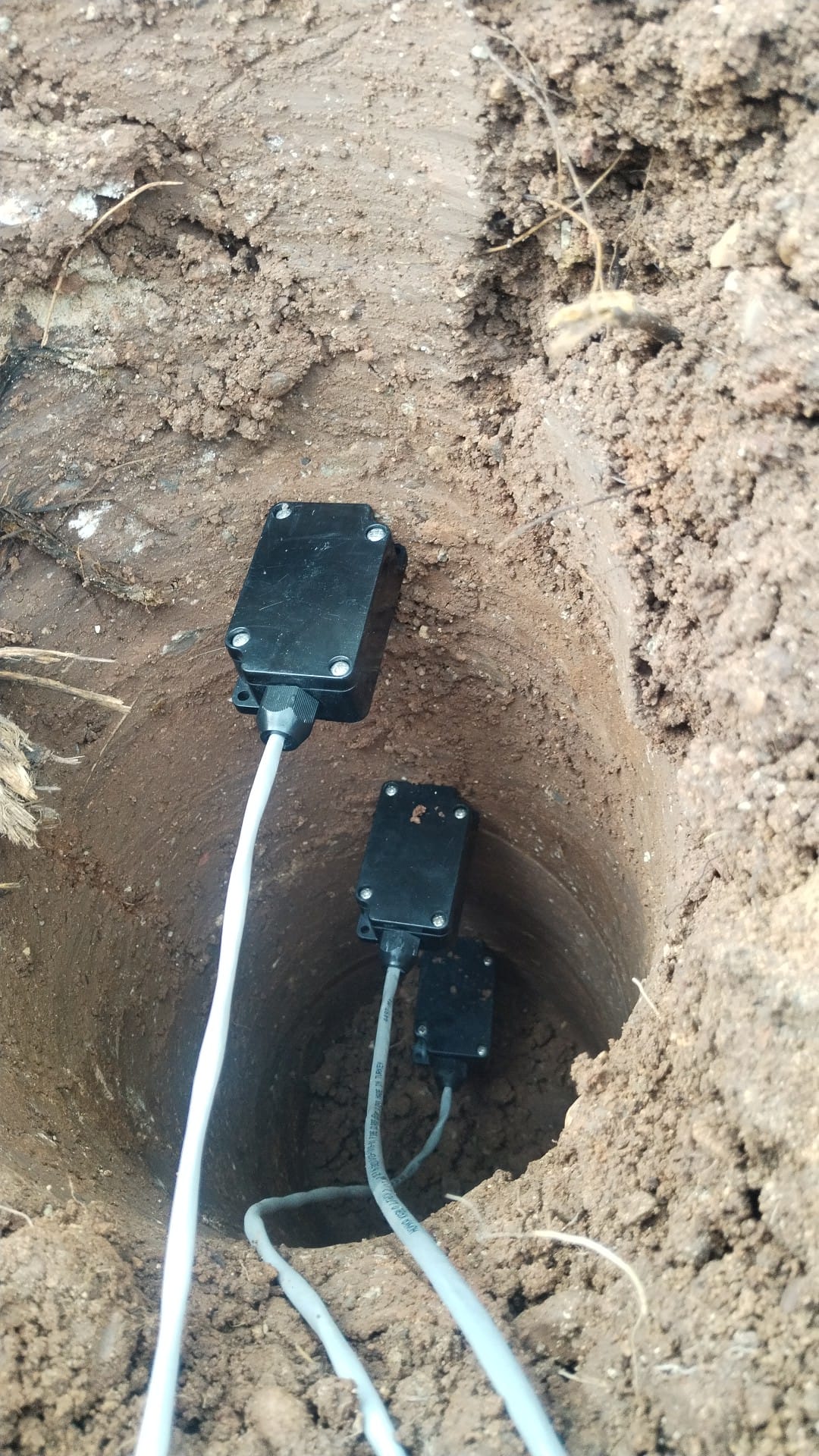

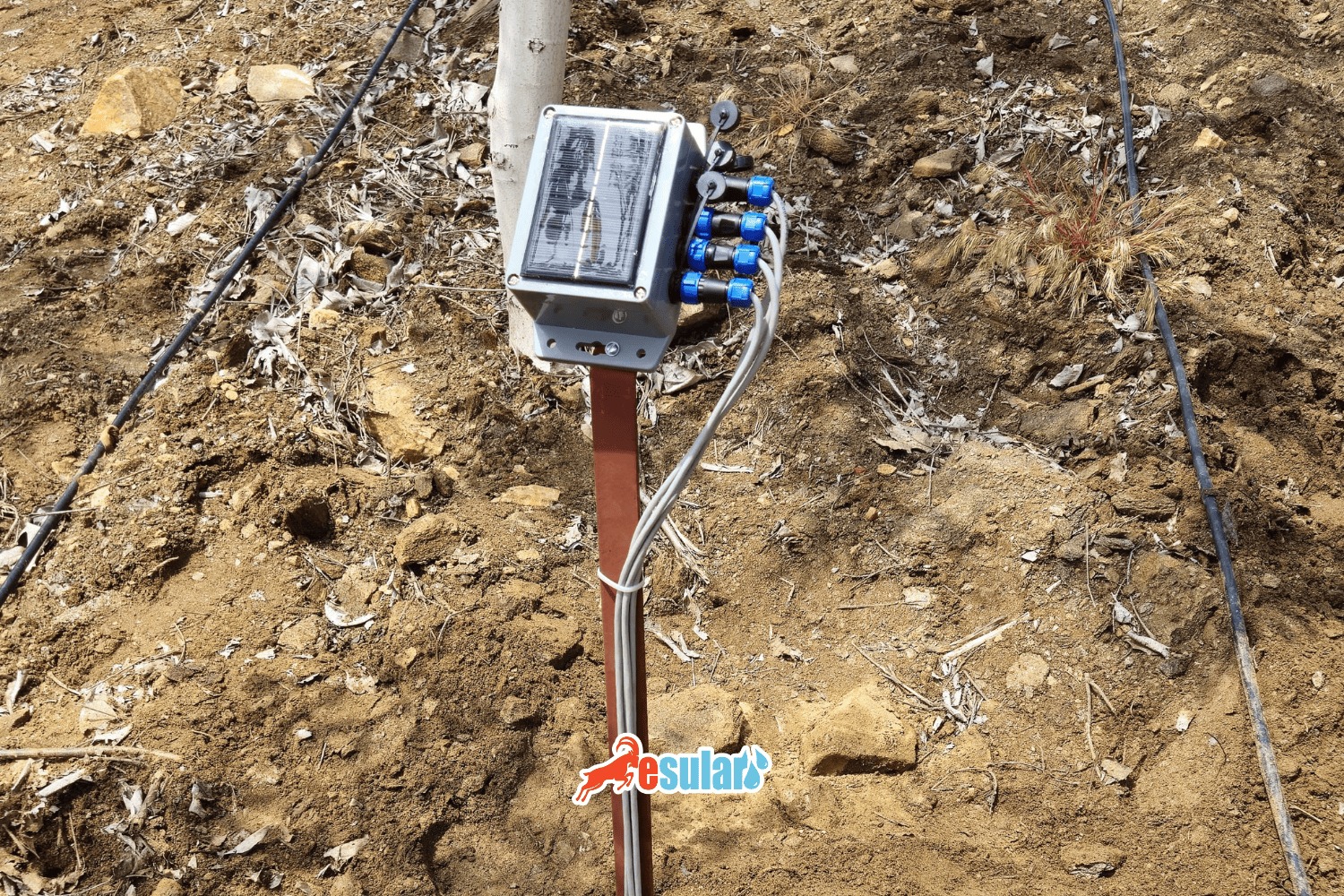

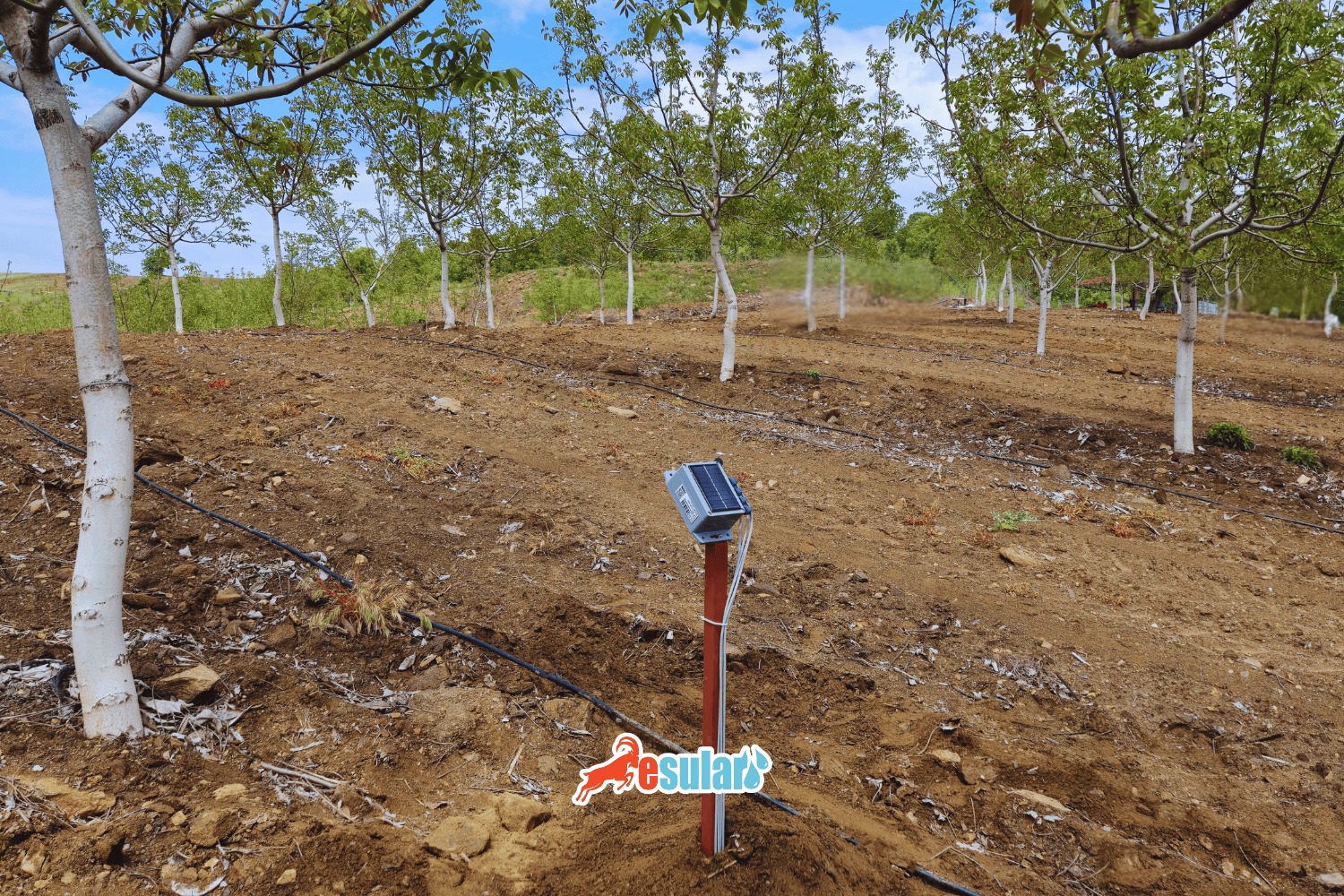

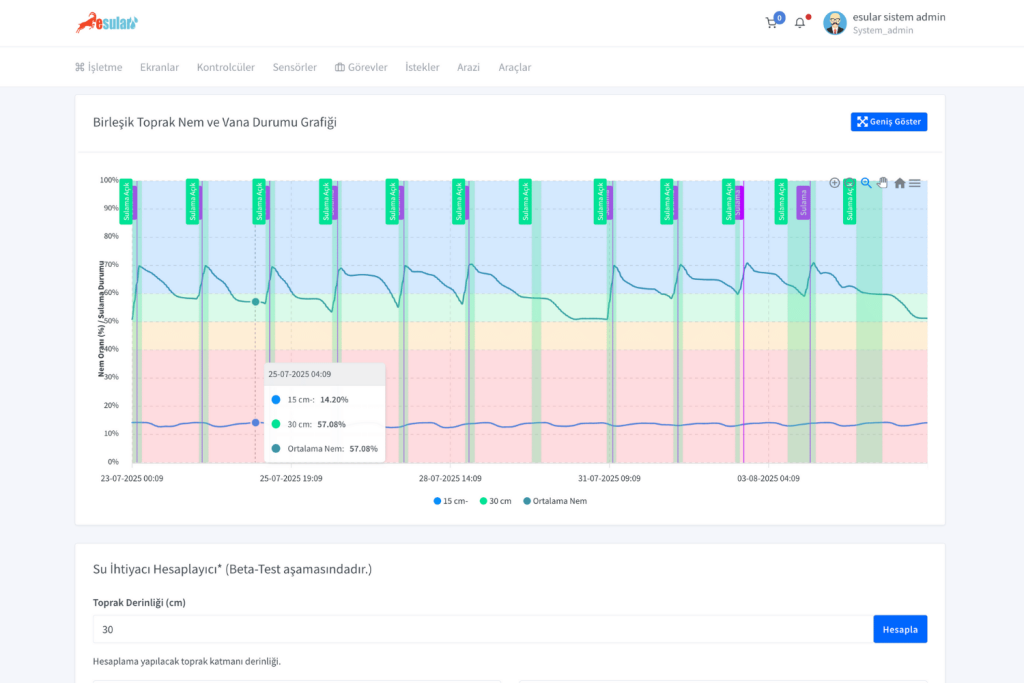

Real Field Installations
Examples from installation and application works we have carried out in different agricultural areas
Detailed technical information
Smart-Soil 3
| Prob Sayısı | 3 pieces |
| Measurement Depths | 30 / 60 / 90 cm |
| Kablosuz Menzil | 5 km (LoRaWAN) |
| Moisture Measurement Range | 0-100% VWC |
| Nem Hassasiyeti | ±2% |
| Temperature Measurement | -40°C ~ +80°C |
| Power Supply | Solar + 5000 mAh battery |
| Protection Class | IP68 |
Smart-Soil 4
| Prob Sayısı | 4 adet |
| Measurement Depths | 30 / 60 / 90 / 120 cm |
| Kablosuz Menzil | 10 km (LoRaWAN) |
| Moisture Measurement Range | 0-100% VWC |
| Nem Hassasiyeti | ±2% |
| Temperature Measurement | -40°C ~ +80°C |
| EC Measurement | 0-20 mS/cm |
| Power Supply | Solar + 5000 mAh battery |
| Protection Class | IP68 |
Where is it used?

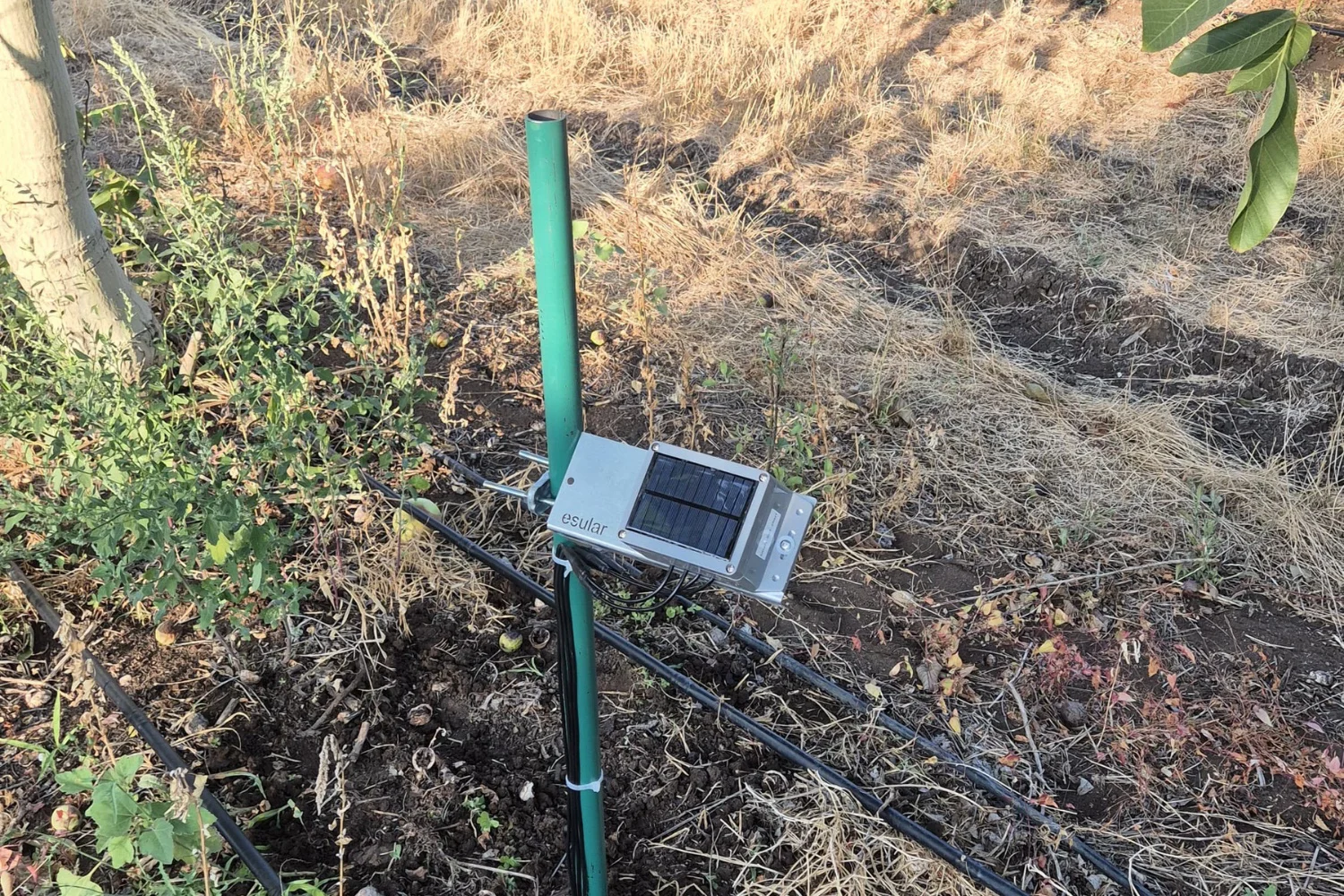

Orchards
Root zone moisture monitoring in apple, pear, cherry, peach, and other orchards.

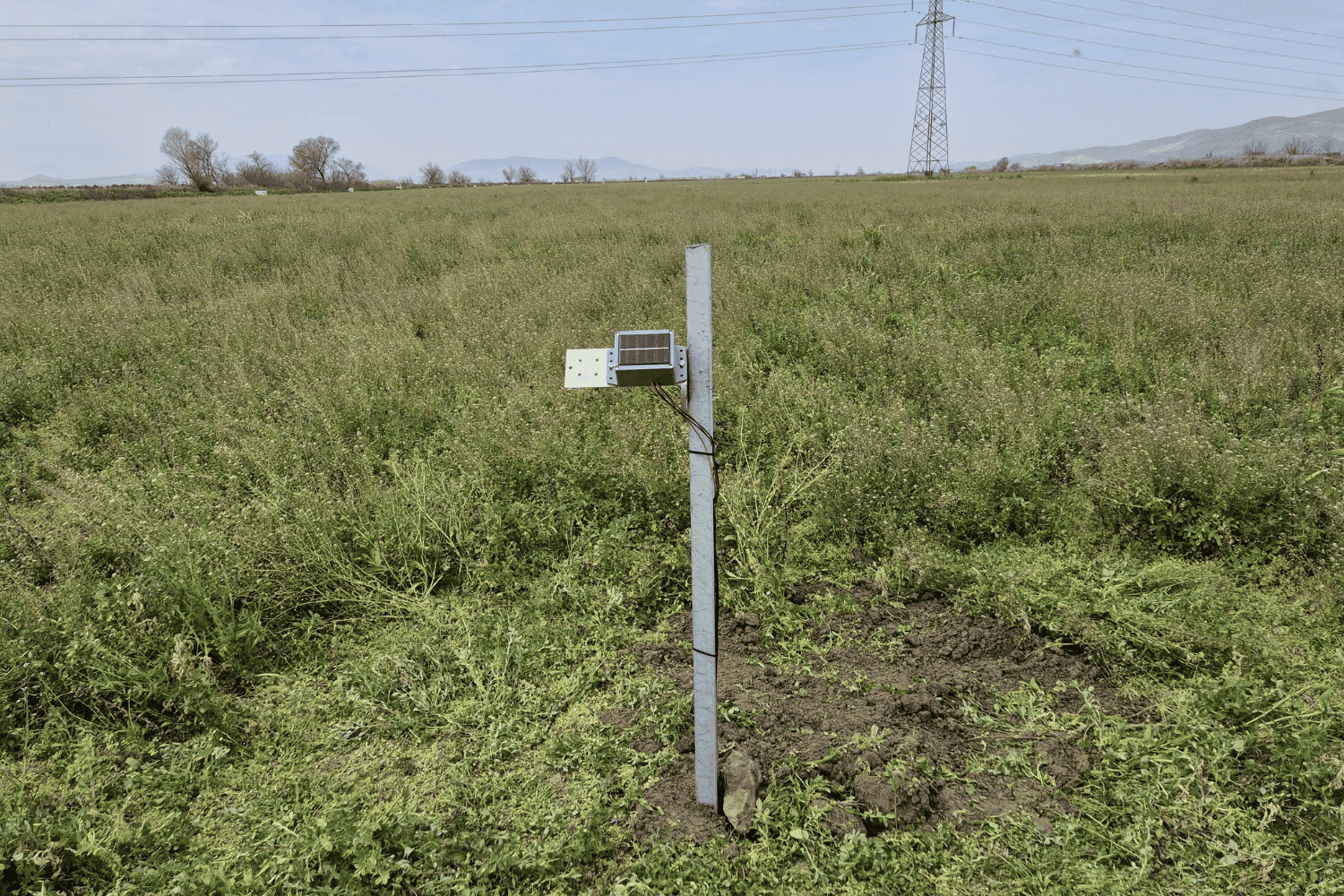

Field Farming
Buğday, mısır, pamuk ve ayçiçeği gibi tarla bitkilerinde sulama optimizasyonu.

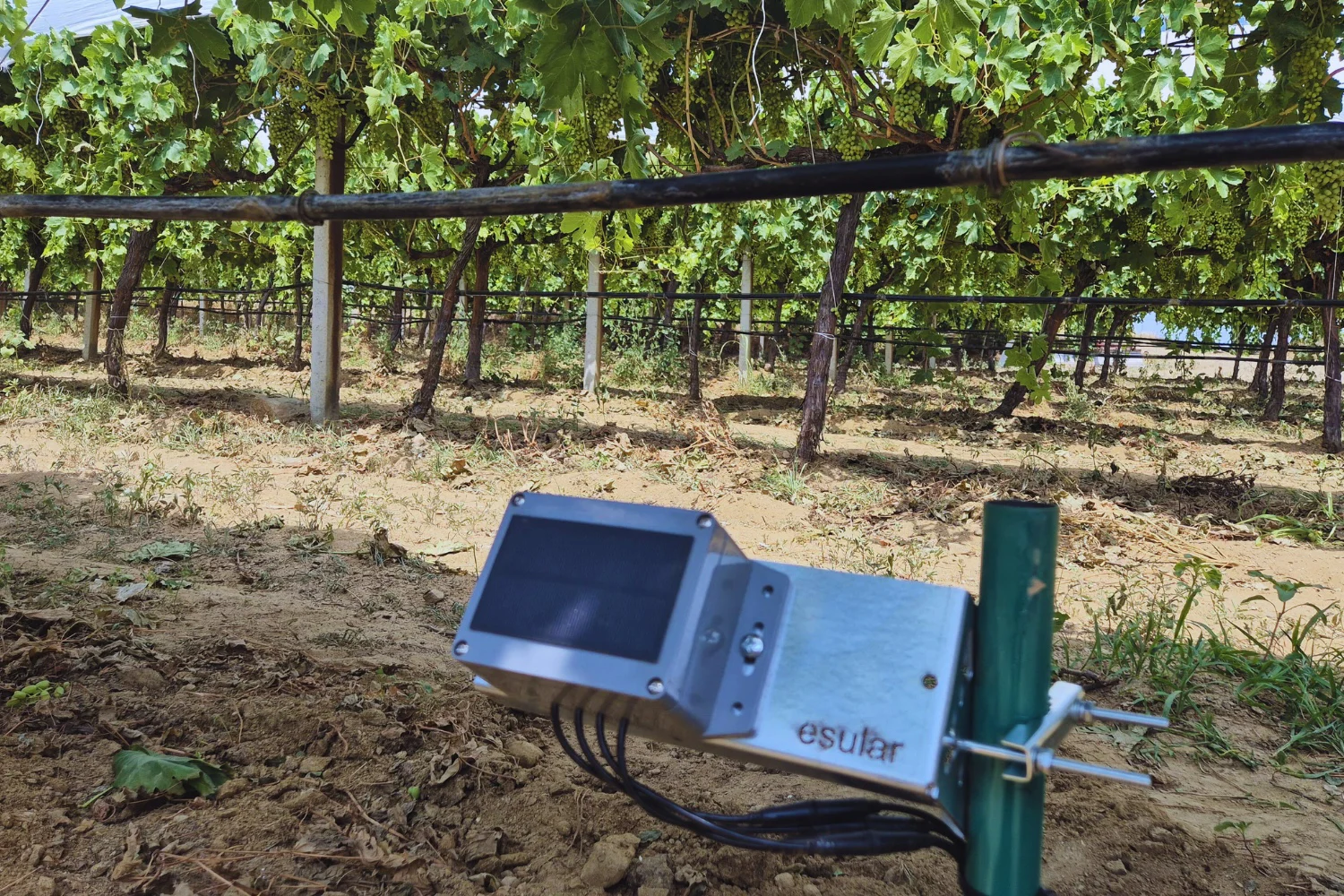

Viticulture
Moisture control for stress management and quality grape production in vineyards.

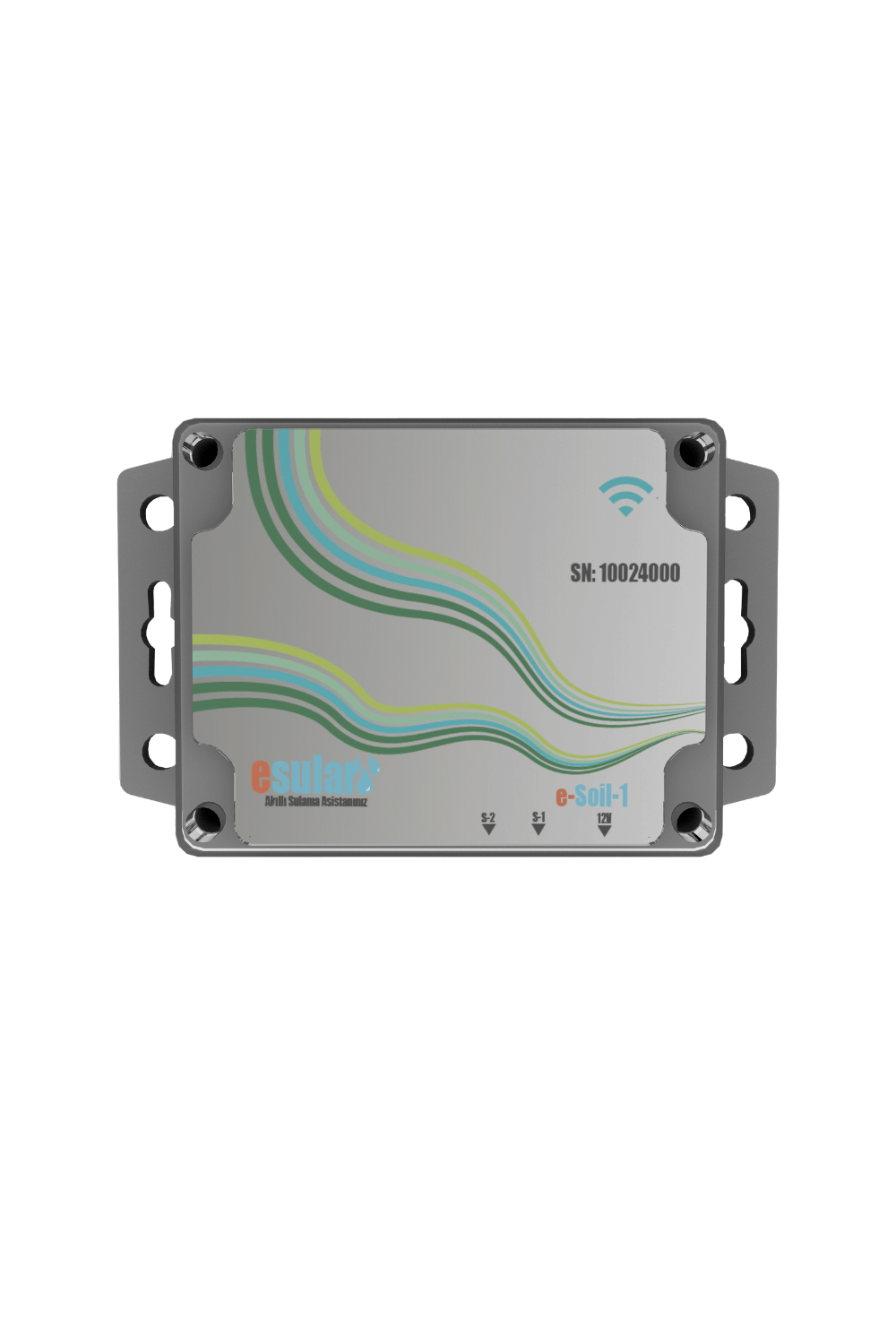

Greenhouse farming
Ideal solution for precise control of substrate and soil moisture in greenhouses.
Frequently Asked Questions
What is the range of the wireless sensors?
Our sensors can provide communication up to 5-10 km in open areas using LoRaWAN technology. With the special fiberglass antenna included in the Professional package, you can cover larger areas.
What is the battery life?
Our sensors are equipped with a 5000 mAh battery and an integrated solar panel. Under normal conditions, the solar panel continuously charges the battery. The battery can operate for approximately 45-60 days on a full charge without solar energy.
What is stepped measurement?
Stepped measurement means our sensor can measure the moisture level at different soil depths separately. With Smart-Soil 3, you can perform simultaneous measurements at 3 depths, and with Smart-Soil 4, at 4 depths.
How long does installation take?
System setup is quite simple. A single sensor installation takes approximately 30 minutes. Multiple sensor installations may vary between 1-3 days depending on the field size. Contact us for detailed information about installation and training services.
What are the mobile application features?
Through our application, you can view all sensor data in real-time, analyze historical data, create charts, set alarm thresholds, and manage automated irrigation plans.
Garanti süresi ne kadardır?
All our products are guaranteed for 2 years. We offer extended warranty options for sensors and electronic devices.
Customer experiences
After we started using the sensors in our vineyard, we achieved a 35% reduction in our water consumption. While our grape quality increased, our irrigation costs significantly decreased.
We use the Professional Package in our 500-decare fruit orchard. Thanks to the special antenna in our large area, we can establish seamless communication with all sensors.
It provided a noticeable saving in energy, water, and travel time to the garden. I used to go 4 times a week, now twice is enough. It contributed the most to labor costs, and the pump motor has not malfunctioned at all.
