What is a Solenoid Valve? Types and Selection Guide
Hydraulic solenoid valve is the most critical component of automatic irrigation systems. Professional irrigation solution at every scale with 4 different solenoid valve types including threaded, angled flanged, cast iron, and pressure controlled, 9V DC Latch & 24V AC energy options, and a diameter range from ¾ inch to 10 inches.
Hydraulic Solenoid Valve: The Heart of Automatic Irrigation
A solenoid valve is a type of hydraulic valve controlled by an electromagnet (solenoid) coil. When an electrical signal is applied, a magnetic field is generated in the coil, causing the piston to move and open or close the valve. When the power is cut, it returns to its original position by spring force (NC — Normally Closed) or maintains its position with magnetic latching (Latch type).
In modern agriculture and gardening applications, solenoid valves of automatic irrigation systems are indispensable components. Thanks to their ability to be controlled remotely or automatically, they meet your plants' water needs at exactly the right time and in the right amount ensures your satisfaction. When used with wireless valve control units, it covers every area from field to greenhouse smart irrigation solutions offers.
With zone-based control capability, it optimizes water consumption by 30-50% in areas with varying irrigation needs. It enables more efficient use of fertilizers by plants through precise control in fertigation applications. Solenoid valves play a critical role in all irrigation methods such as drip irrigation, sprinkler irrigation, center pivot irrigation, and greenhouse irrigation.

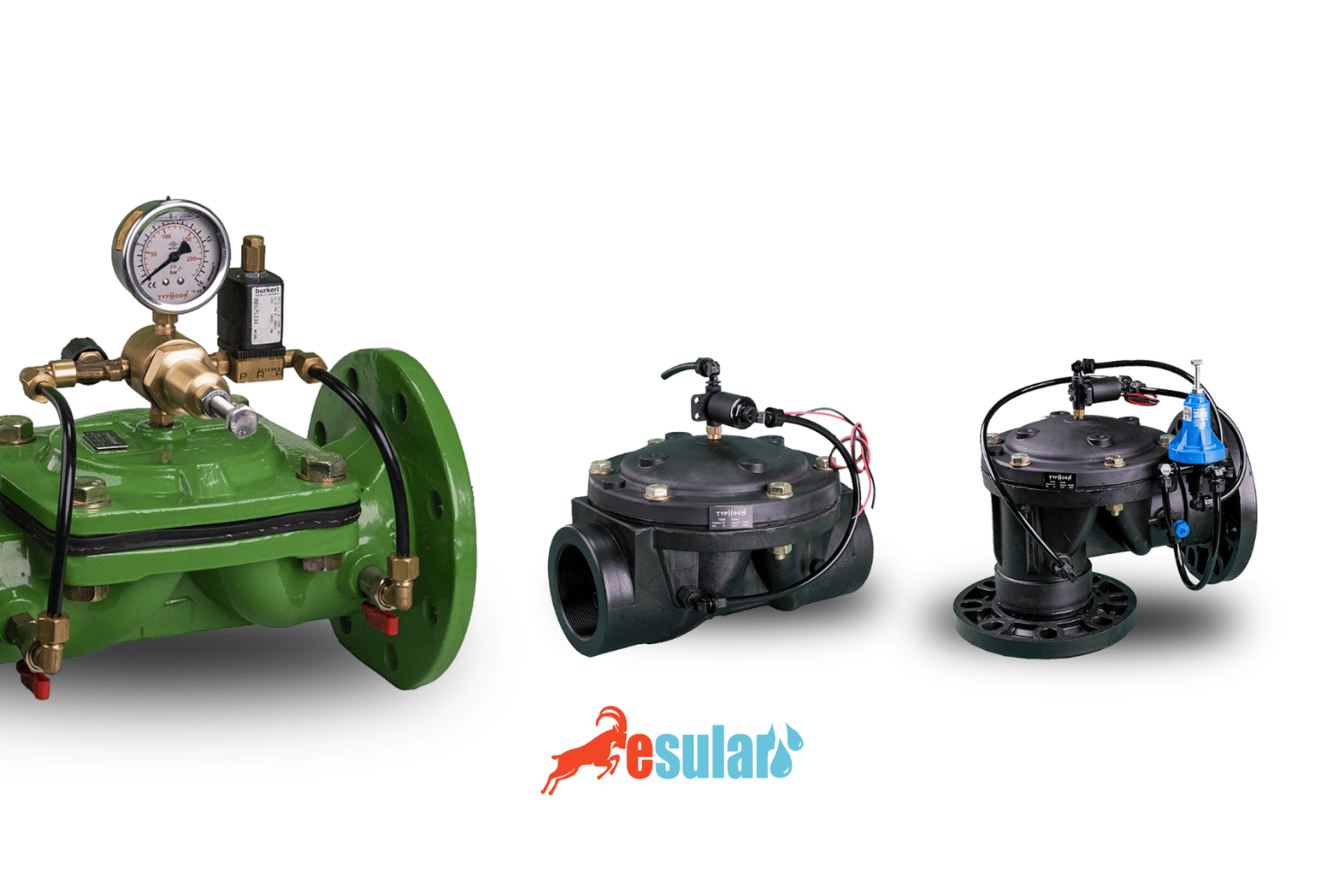

Hydraulic Solenoid Valve Types and Features
4 different solenoid valve types according to your application area: Threaded, Angled Flanged, Cast Iron, and Pressure Controlled
Plastik Kompozit

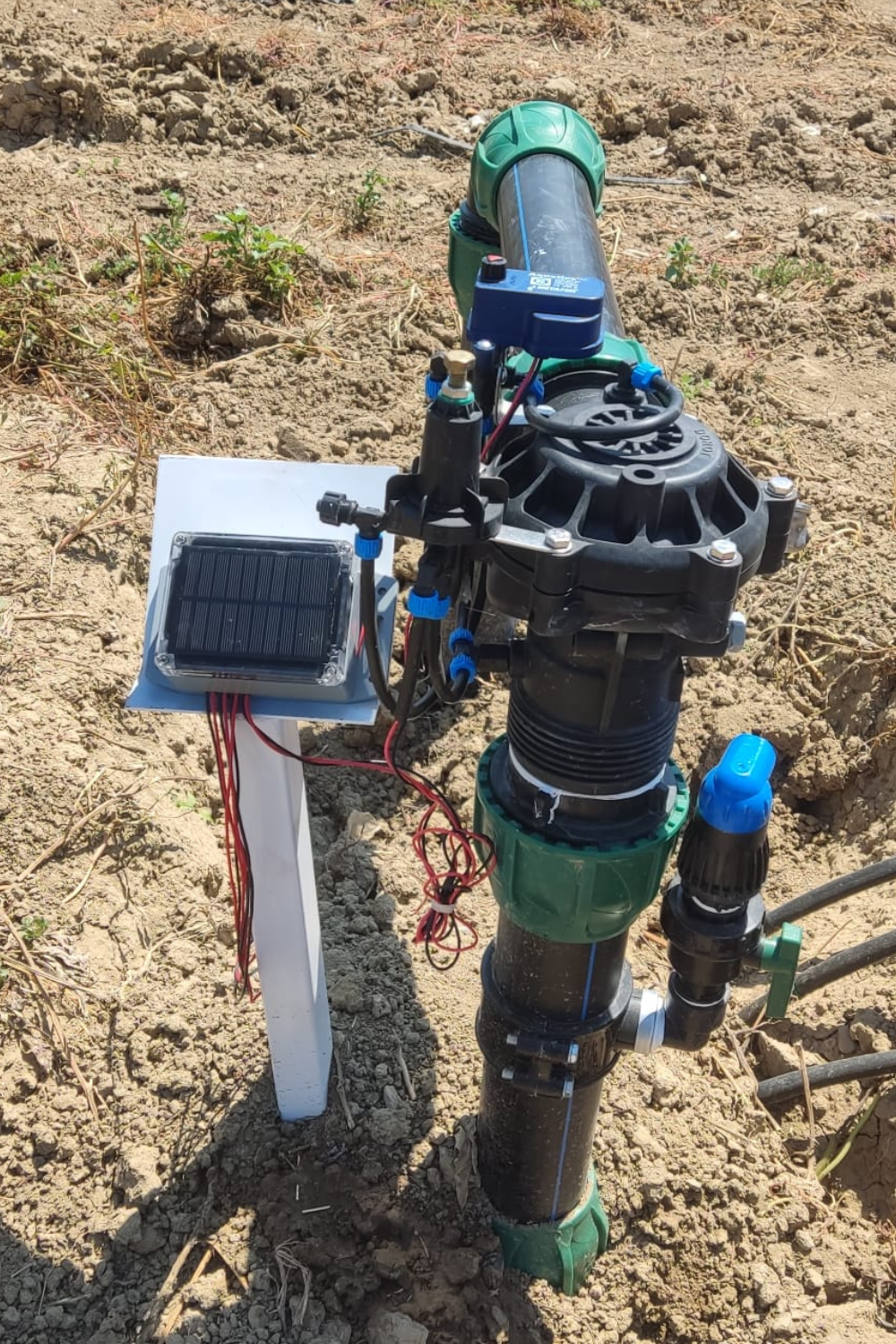

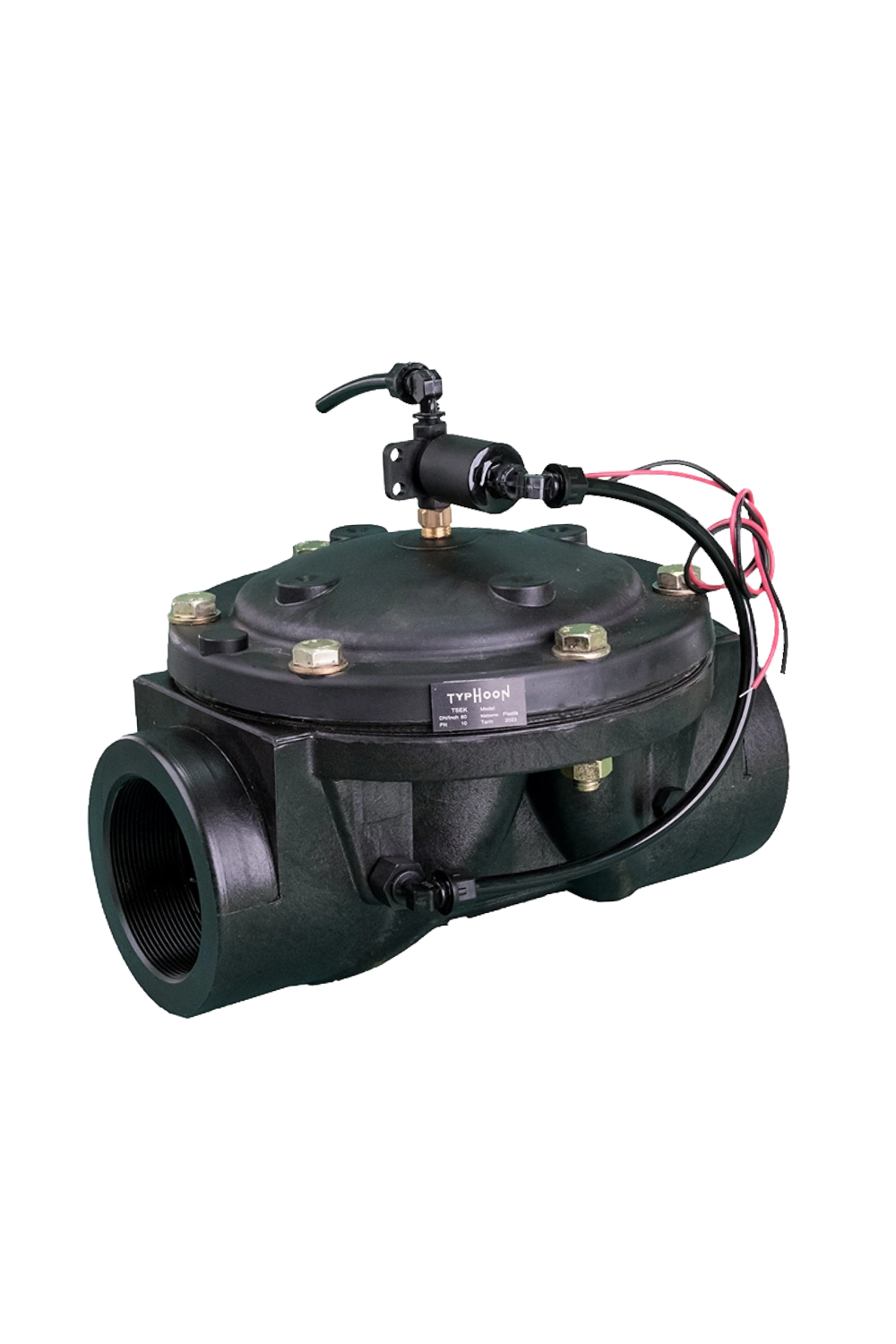

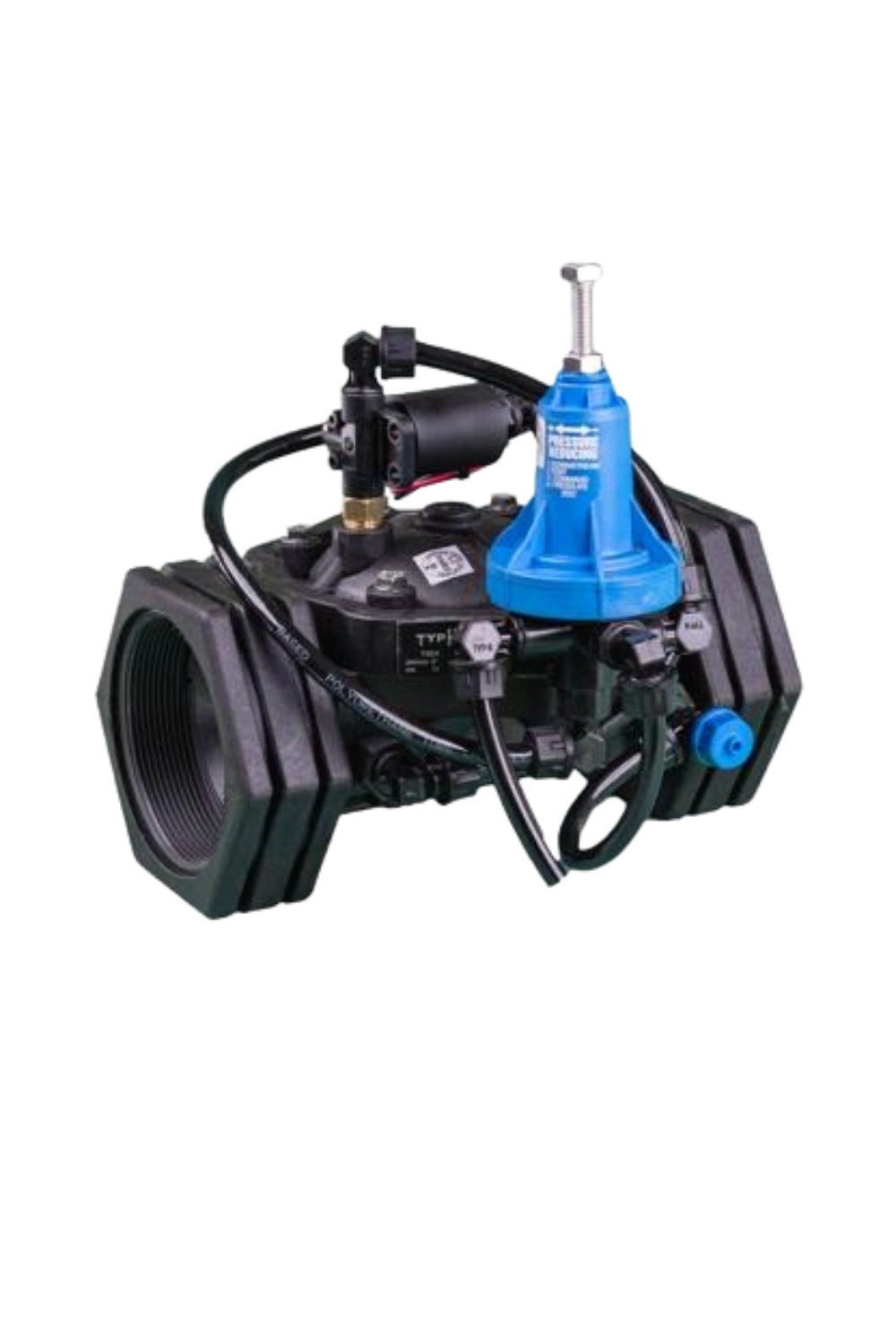

Threaded Hydraulic Solenoid Valve
With its lightweight, corrosion-resistant plastic composite structure, it provides precise water control in drip and sprinkler irrigation applications. Wide range of uses from garden irrigation to field-scale projects. Automatic irrigation timer is the most suitable model for use with.
- Fast installation with threaded connection
- Corrosion-resistant plastic body
- Optimal performance even at low pressure
- Non-surge opening/closing

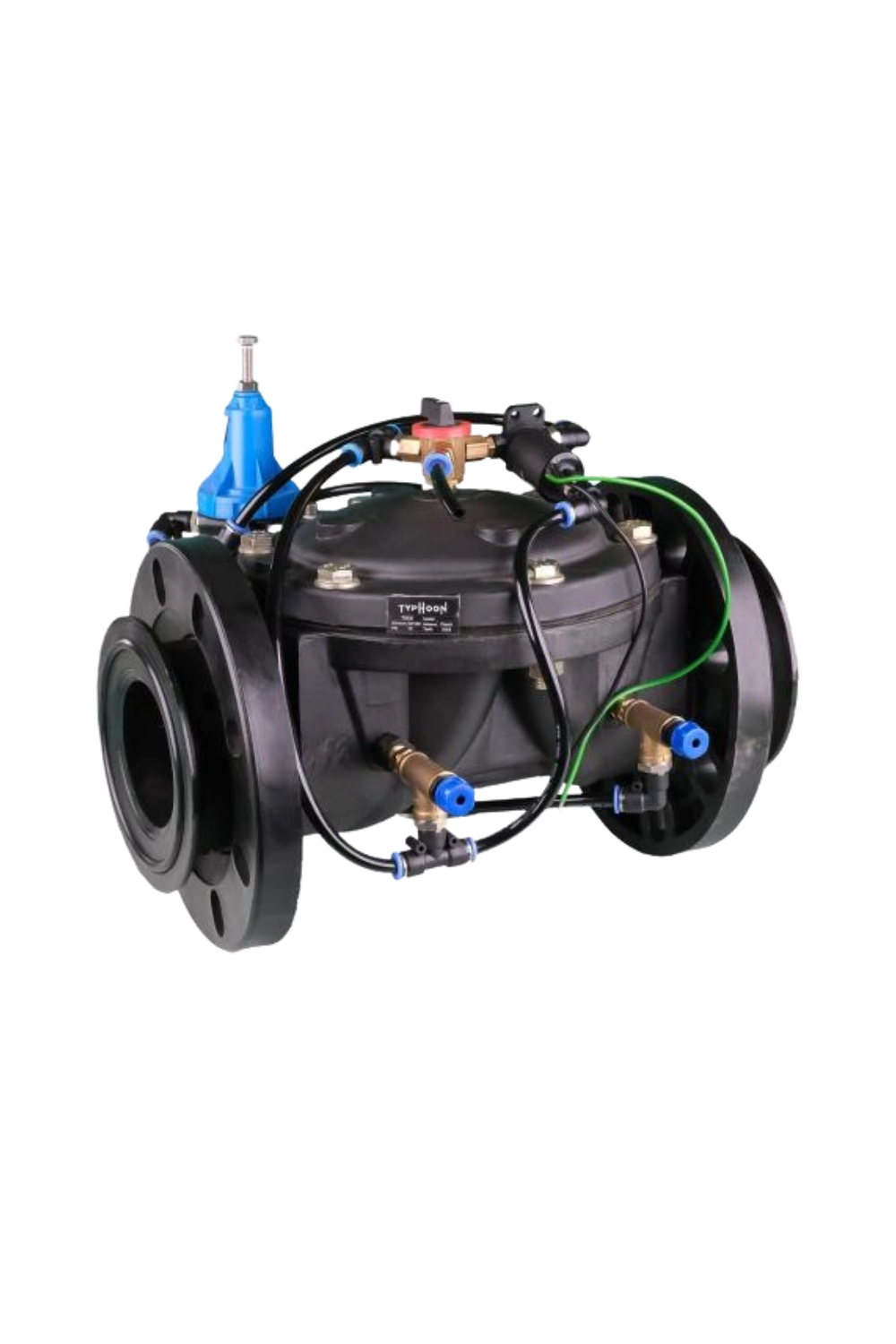

Flanged Connection

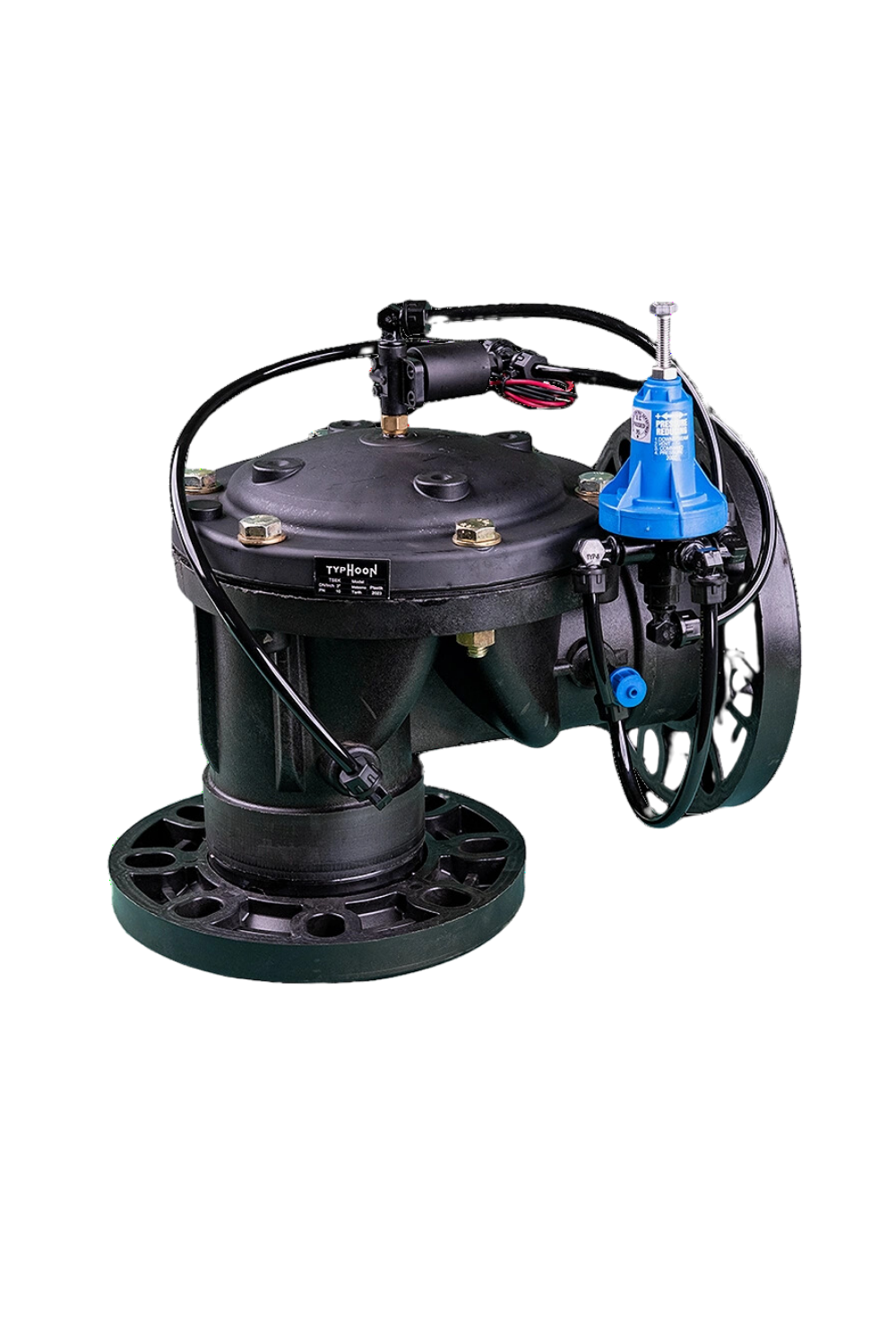

Açılı Flanşlı Hidrolik Selenoid Vana
Designed for professional irrigation projects with a wide range of diameters and a flanged connection system. Protects equipment and saves water with its integrated pressure reducing control feature. Large-scale open field crop irrigation ideal for projects.
- Angled (90°) body structure
- Easy installation with flanged connection
- UV protected durable structure
- Pressure reducing control capability
Industrial

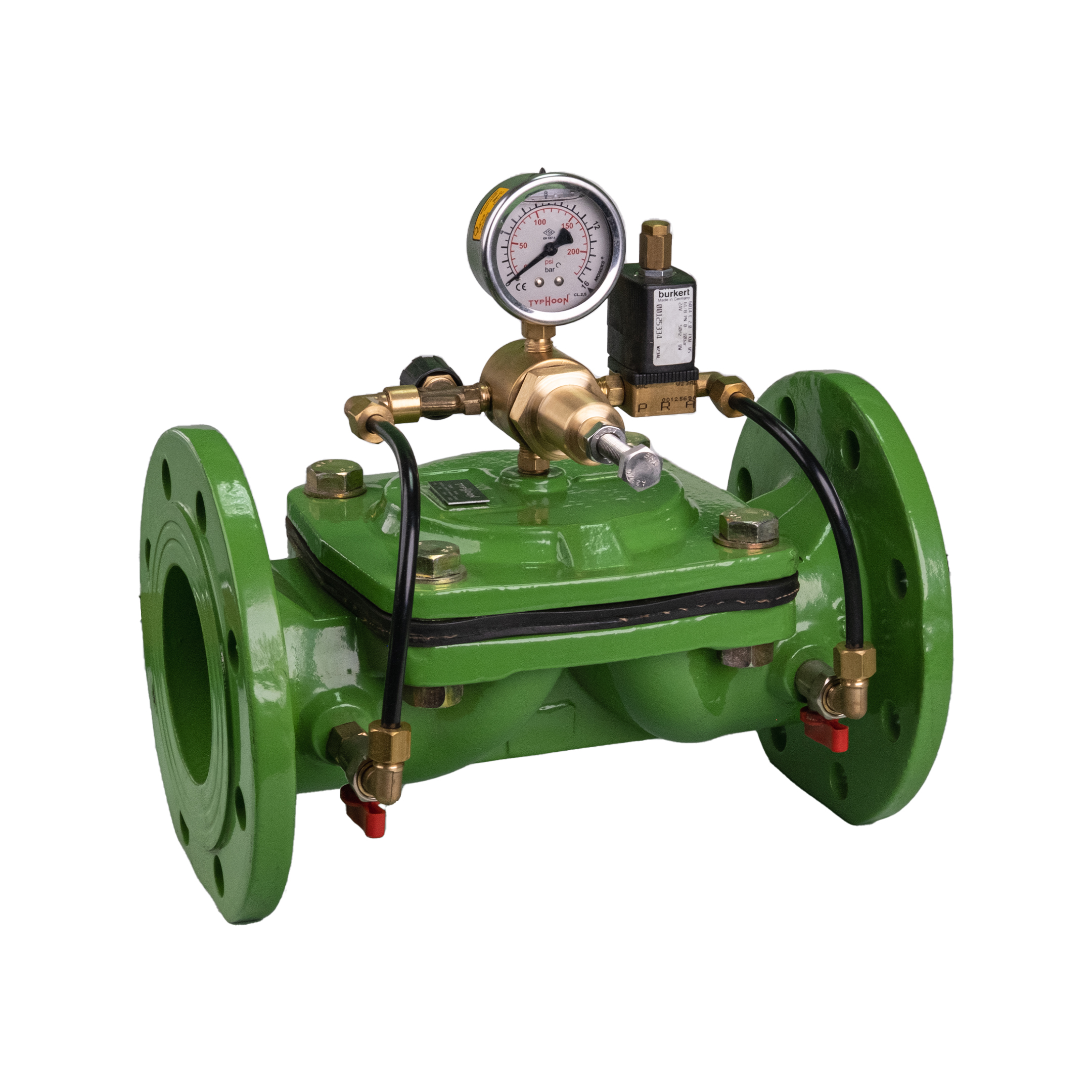

Cast Iron Solenoid Valve
Cast body solenoid valves designed for industrial use in high diameters. Ideal for large-scale irrigation and water management systems with high pressure resistance and long-lasting structure.
- High pressure resistance
- Cast iron body, long life
- Industrial application compatibility
- N.O. / N.C. coil options
Pressure Controlled

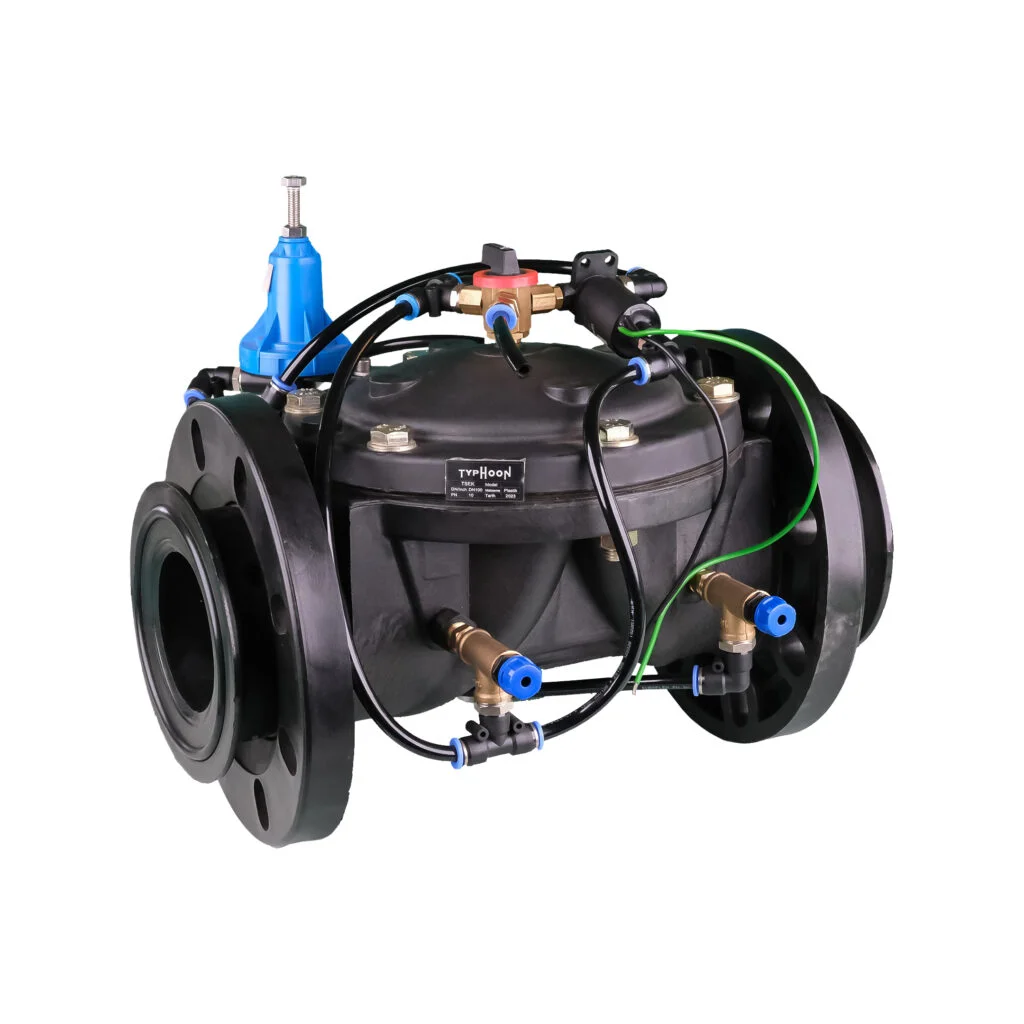

Pressure Controlled Solenoid Valve
Advanced solenoid valve that senses pressure values and reduces the inlet pressure to the desired level. It works fully compatible with PLC, SCADA, and automation systems.
- Precise inlet pressure reduction
- PLC and SCADA compatible
- Low energy consumption
- Ease of automation
Solenoid Valve Comparison of Technical Specifications
Compare threaded, flanged, cast iron, and pressure-controlled solenoid valve models in terms of diameter, pressure, energy, and installation
| Feature | Threaded | Angled Flanged | Cast | Pressure Controlled |
|---|---|---|---|---|
| Çap Aralığı | 3/4" - 2½" | 3/4" - 4" | 5" - 10" | 3/4" - 6" |
| Pressure Class | PN 10 | PN 10 | PN 10/16 | PN 10 |
| Body Material | Plastik Kompozit | Plastic / Metal | Cast | Plastic / Metal |
| Connection Type | Threaded | Flanged | Threaded / Flanged | Threaded / Flanged |
| 9V DC Latch | ✓ | ✓ | ✓ | ✓ |
| 24V AC | ✓ | ✓ | ✓ | ✓ |
| Pressure Reducer | — | ✓ | — | ✓ |
| Current (9V DC) | 10-200 mA | 10-200 mA | 10-200 mA | 10-200 mA |
| Current (24V AC) | 100-500 mA | 100-500 mA | 100-500 mA | 100-500 mA |
| Installation | Horizontal / Vertical | Horizontal / Vertical | Horizontal / Vertical | Horizontal / Vertical |
Plastic Composite Solenoid Valve Advantages
Superior performance, cost, and durability advantages compared to traditional metal and brass solenoid valves
Lightweight
Much lighter than metal valves. Reduces shipping and installation costs.
Corrosion Resistance
High resistance to chemicals and fertilizers. Maintenance-free.
Cost Effectiveness
Offers a more economical solution compared to metal alternatives.
Çevre Dostu
Lower energy consumption and use of recyclable materials.
Flexible Design
Possibility to develop special solutions for different irrigation systems.
9V DC Latch Solenoid Valve vs 24V AC Solenoid Valve
Should it run on battery or mains electricity? Determine the appropriate solenoid valve energy type for your project.
9-12V DC Latch
For remote locations operating with battery or solar panel
- Voltage9-12V DC
- Current Consumption10 - 200 mA
- When Power is CutMaintains its position
- Cable2 different colors
- Ideal UseField, vineyard, remote area
24V AC
Continuous power for areas with mains electricity
- Voltage24V AC
- Current Consumption100 - 500 mA
- Frequency50/60 Hz
- Cable2 same colors
- Ideal UseGarden, park, greenhouse
Solenoid Valve Where is it used?
Wide range of usage areas from agricultural irrigation to industrial facilities, greenhouse automation to smart city projects
Product Visuals
Examine our solenoid valve products closely
About Solenoid Valve Frequently Asked Questions
Most frequently asked questions about solenoid valve selection, installation, and maintenance
Choose the Right Solenoid Valve for Your Project
Let's determine the most suitable solenoid valve type, diameter, and energy option for your irrigation system together. Benefit from our free technical consultancy service.
