GSM-enabled Wireless Smart Irrigation Central Station - F Series
The biggest problem in agricultural areas is that energy and cabling are costly and impractical. Our irrigation management system, developed by Esular, is completely wireless. Valve controls for irrigation and sensor data collection are performed entirely wirel...
Technical Specifications
| Dimensions | 105 x 91 x 58.5 mm |
|---|---|
| Document | Technical Documentation Available |
Product description
The biggest problem in agricultural areas is that energy and cabling are costly and impractical. Our irrigation management system, developed by Esular, is completely wireless. Valve controls for irrigation and sensor data collection are performed entirely wirelessly. Thanks to this system structure, installation is very easy. Place the communication unit in a suitable location and perform controls easily.
GSM-enabled Wireless Smart Irrigation Central Station - Electric or Solar Powered - Internet-based Irrigation and Pump Control - Short Range - Lite-F Series

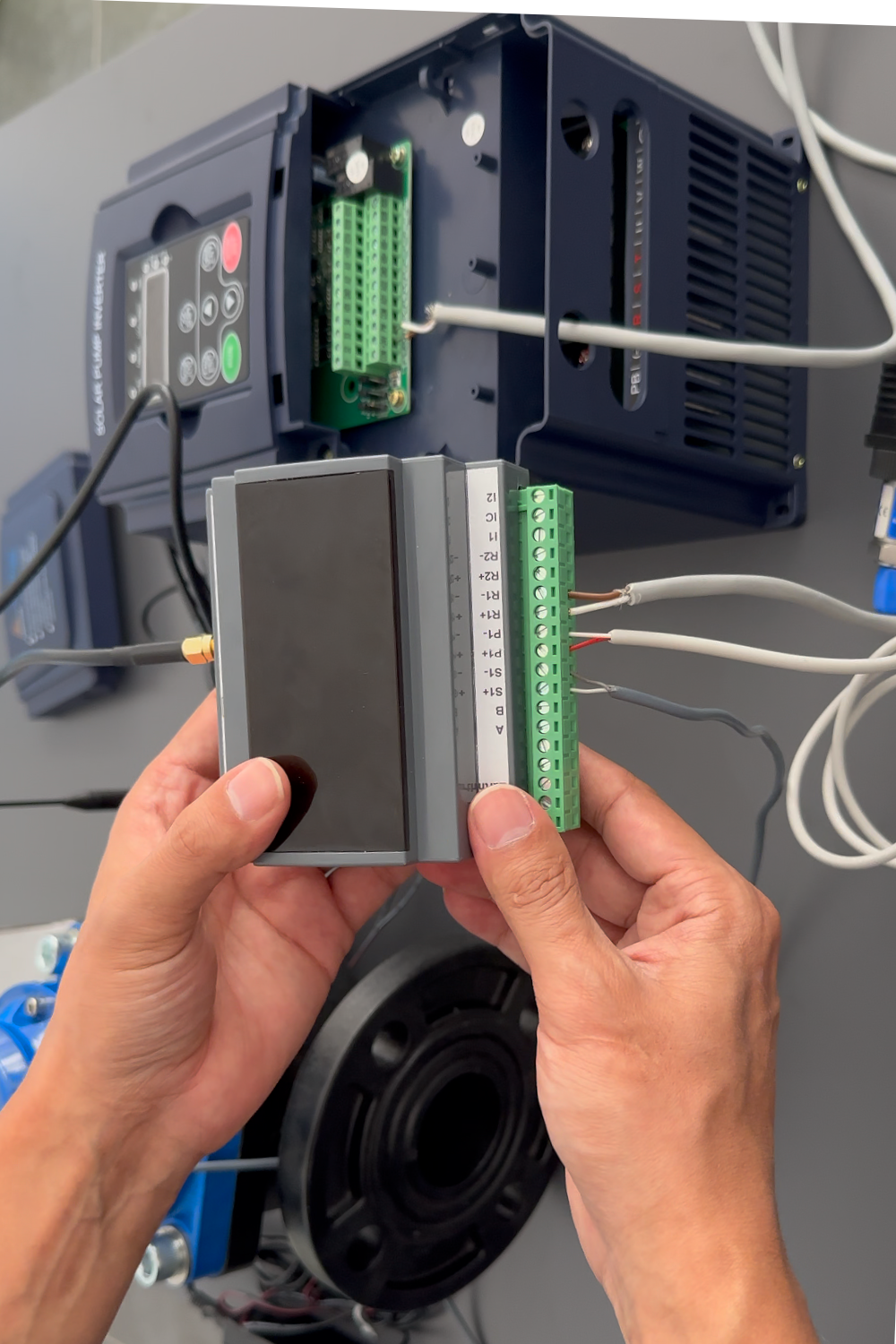

Wireless Installation
During installation, no cabling is required other than antenna and solar panel connections. Valves and sensors communicate via LoRa. It communicates with the cloud server over the GSM infrastructure.
Solar Power Operation
No external grid connection is required. It offers up to 2 days of uninterrupted communication with a 100 Watt solar panel and a 14AH battery. If desired, it can be connected to the city grid via an external power input.
Wireless Control Up to 1 KM
You can read and control valves and sensors up to 1 km. This makes the entire system fully expandable.
Easy Rescaling
You can easily add new valves and sensors to the system within 5 minutes. It allows for easy addition and removal without the need for reconfiguration.
General Features:
- Electric or Solar Power Options
- Wireless Pump Control
- Internet-based Irrigation and Pump Control
- External Antenna
- GSM, Internet-based Control
- LoRa-LoRaWAN Wireless Communication
- 12-24VDC Input
- 1-2 Pump Control Outputs
- 1 x 4-20mA Pressure Sensor Input
- 1 x Water Meter Pulse Input
- IP54 Protected Enclosure
- Antenna and Adapter Included in Price
Application Areas
- Smart Agriculture Applications
- Smart Greenhouse Applications
- Smart Landscape Applications
- Vertical Farming Applications
- Smart Irrigation Systems
- Hydroponics Applications
- SCADA Systems
- IoT (Internet of Things)
- Park, Garden Smart Irrigation Solutions
- LoRa / LoRaWAN Sensor Applications
- Germination, Rooting Automation
This control station is designed for use in central irrigation systems and offers wireless options for irrigation and pump control.
These control units are designed for use over short distances and belong to the Lite-F Series. They can be used with electric or solar power options and feature external antenna and control via GSM or internet. They use LoRa-LoRaWAN wireless communication technology and provide 12-24VDC input. Additionally, they have extra features such as 1-2 pump control outputs, 1 x 4-20mA pressure sensor input, and 1 x water meter pulse input. Their IP54 protected enclosures, antenna, and adapters are included in the price.
Technical Documents
Download the documents for detailed product information
