GSM Remote Irrigation Control System-Esular Smart Series
Smart system that allows you to perform remote irrigation control in fields and gardens using GSM technology. Manage your pumps and valves via the mobile application and put an end to the complexity of SMS commands. With F and E Series models, it offers solutions at every scale, from small gardens to large farms.
Technical Specifications
| Size | 105 x 91 x 58.5 mm - 160 x 240 x 112 mm |
|---|
Documents
Product description
Smart system that allows you to perform remote irrigation control in fields and gardens using GSM technology. Manage your pumps and valves via the mobile application and put an end to the complexity of SMS commands.
Key Benefits
- Scalable solutions for every scale, from small gardens to large farms
- User-friendly mobile interface
- Elimination of costly SMS command structures
GSM Remote Irrigation Control System - Smart Series
The Esular Smart Series is a next-generation smart system that allows you to control field irrigation via GSM using a mobile application. Manage all your irrigation operations with a single touch without the need to write SMS commands.
Why Esular Smart Series?
- Mobile Application: No SMS commands, one-touch control
- Multiple Connectivity: GSM, WiFi, and LoRa options
- Wireless Expansion: Valve and sensor support
- Pump Control: Management of 1-4 pumps
- Pressure and Meter: Real-time monitoring
- Automatic Irrigation: Timer and sensor-based
- Durable Design: IP54-IP65 protection
- Solar Panel: Energy independence
Model Overview
F-Min Model: Compact solution for small gardens and hobby farming. GSM connection, 1 pump control, basic monitoring features. Adapter-powered, 8 automatic tasks.
F-Max Model: Powerful system for medium-sized fields. 1 km wireless range, support for 16 valves and 16 sensors. Solar panel compatible with 5000 mAh battery.
E-Min Model: Comprehensive control for large fields. Capacity for 2 pumps, 64 valves, and 64 sensors. GSM + WiFi + LoRa triple connectivity, web panel support.
E-Max Model: Maximum capacity for the largest farms. 5-10 km range, 128 valves, and 128 sensors. 4 pump control, API integration.
General Specifications
- Connectivity: GSM/WiFi/LoRa/LoRaWAN (depending on model)
- Power: 220V Adapter or 5000 mAh rechargeable battery
- Wireless Range: Between 1 km - 10 km
- Protection: IP54 or IP65
- Operating Temperature: -40°C to +85°C
- Mobile Application: iOS and Android
- Warranty: 2 years
Box Contents
- Control unit
- GSM antenna
- Power supply
- Mounting bracket
- User manual
Application Areas
- Field irrigation automation
- Garden and landscape irrigation
- Greenhouse irrigation systems
- Fruit orchards
- Smart farming applications
- IoT agriculture projects
Model Comparison
Model Comparison
F-Min - Entry Level
- GSM: Available
- Wireless Control: None
- Power: 220V Adapter
- Pump: 1 Unit
- Task: 8 Units
F-Max - Mid Level
- GSM + LoRa: Available
- Wireless Range: 1 km
- External Valve: 16 Units
- External Sensor: 16 Units
- Power: 5000 mAh Battery + Solar
- Pump: 1 Unit
- Task: 8 Units
E-Min - Professional
- GSM + WiFi + LoRa: Available
- Wireless Range: 1 km
- External Valve: 64 Units
- External Sensor: 64 Units
- Power: 5000 mAh Battery + Solar
- Pump: 2 Units
- Task: 16 Units
- Web Panel: Available
E-Max - Premium
- GSM + WiFi + LoRaWAN: Available
- Wireless Range: 5-10 km
- External Valve: 128 Units
- External Sensor: 128 Units
- Power: 5000 mAh Battery + 14AH Battery
- Pump: 4 Units
- Task: 32 Units
- Web Panel + API: Available
Mobile App Instead of SMS
Why Mobile App, Not SMS?
Traditional GSM irrigation systems work with SMS commands. This method is both complex and costly.
SMS Control System
- Requires memorizing complex commands
- SMS fee for every transaction
- Cannot receive status information
- Only one phone can be used
- No reporting
- Difficult to receive alerts
Esular Mobile Application
- One-touch control, no memorization

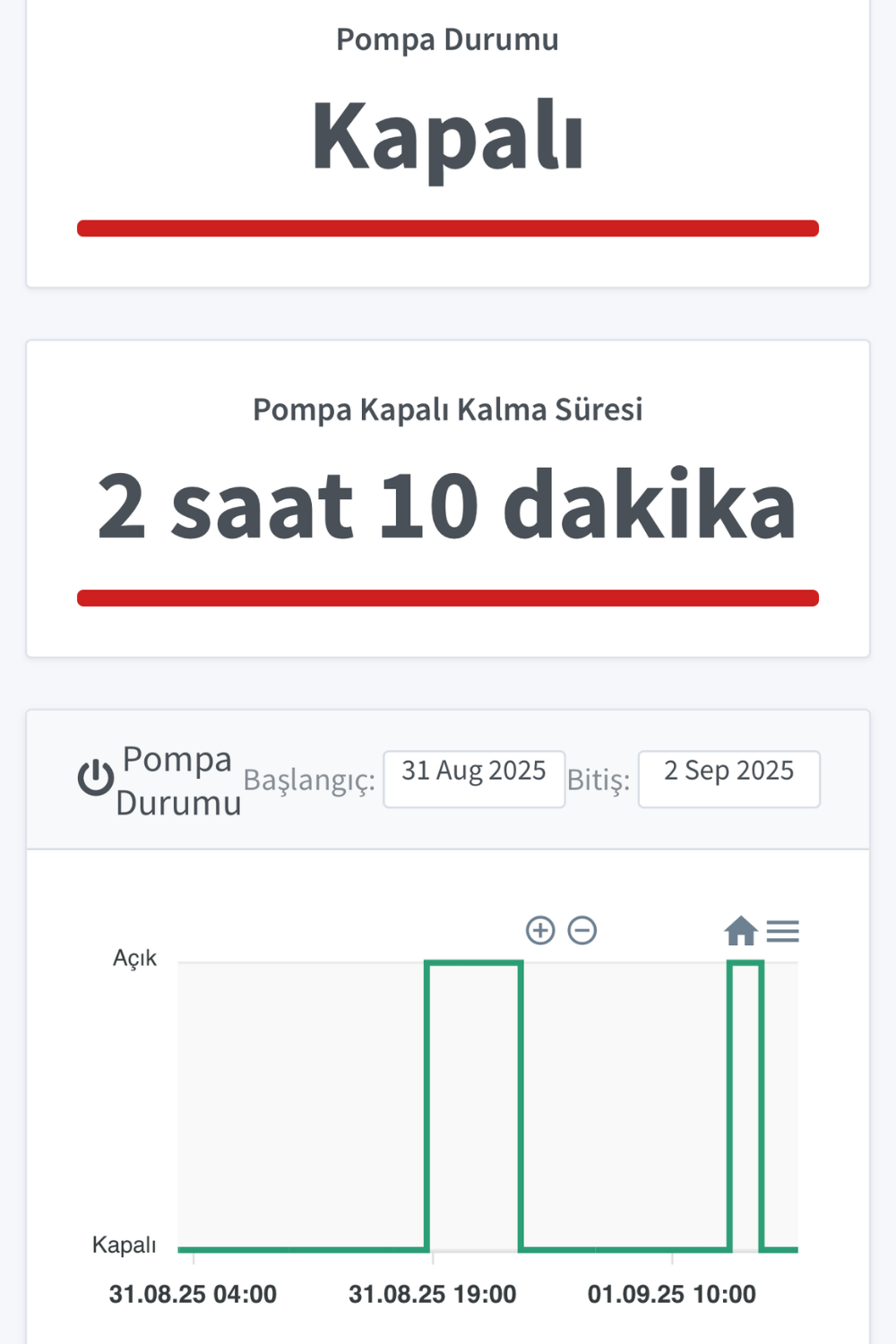

- Instant status information and graphs
- Access from unlimited devices

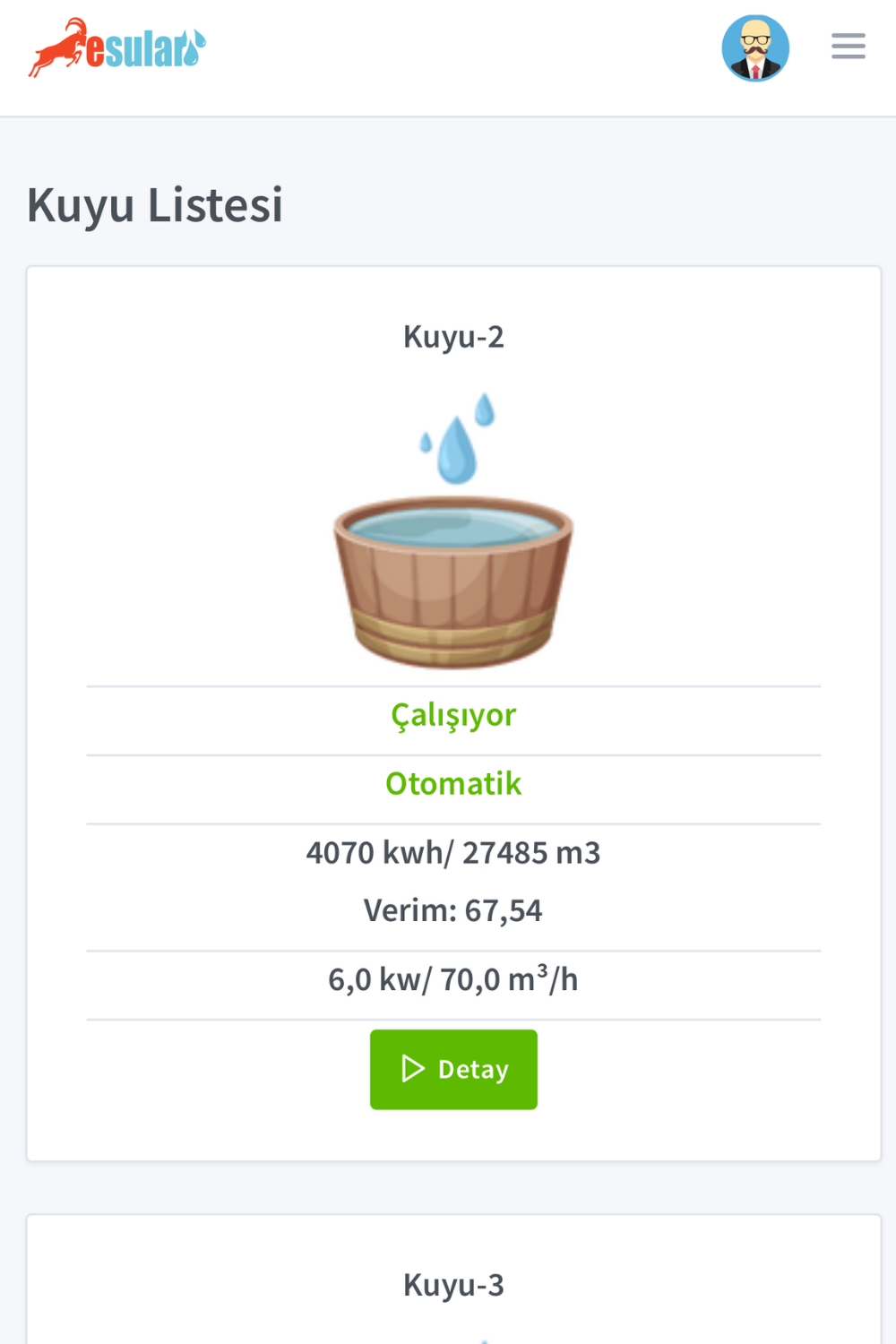

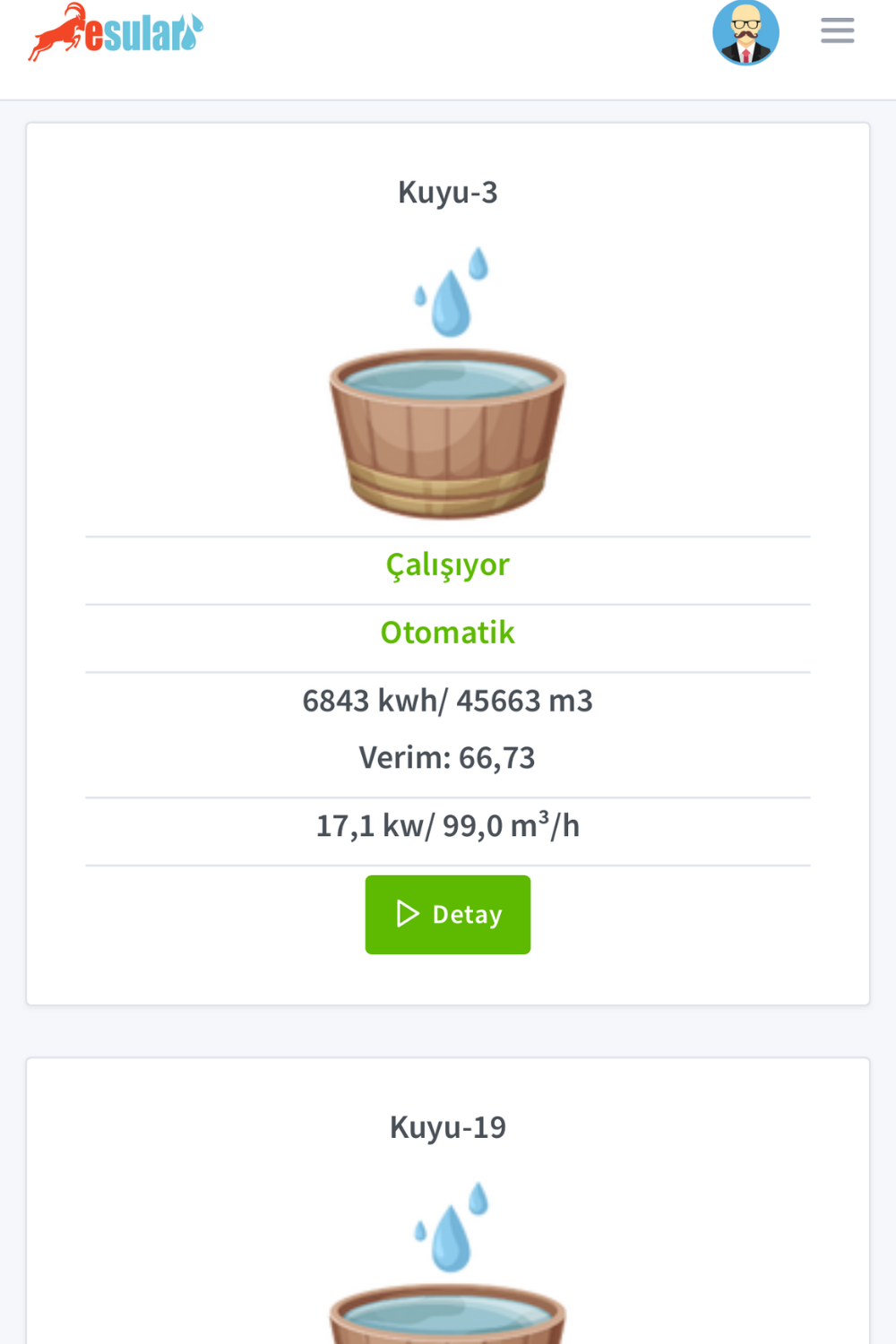

- Detailed water consumption and operation reports
- Instant notification for malfunctions and warnings
Wireless Expansion Advantages
Wireless Valve and Sensor Support
F-Max, E-Min, and E-Max models offer wireless expansion features. Thanks to this technology, you can grow your system quickly and economically.
Key Features
- No Cables Required: Valves and sensors connect completely wirelessly. Zero infrastructure cost, no digging or cabling required.
- Fast Installation: Adding a new valve or sensor takes only 5 minutes. Technical knowledge is not required.
- Wide Range: Wireless communication distance between 1 km - 10 km with LoRa technology.
- Scalable System: The system can be expanded or downsized according to needs from 16 to 128 valves.
- Low Cost: Much more economical than wired systems with a short ROI period.
Technical Documents
Download the documents for detailed product information
