Wind Speed and Direction Sensor
The Wind Speed and Direction Sensor is a superior device designed to measure wind speed and direction with high precision and reliability. Available both as a package and individually, this sensor is widely preferred, especially in weather stations.
Technical Specifications
| Document | Technical Documentation Available |
|---|
Product description
The Wind Speed and Direction Sensor is a superior device designed to measure wind speed and direction with high precision and reliability. Available both as a package and individually, this sensor is widely preferred, especially in weather stations.
Its ergonomic design, which offers easy installation in outdoor environments, combines with a durable structure against harsh weather conditions to provide long-lasting use. Thanks to its high performance and robustness, it is an ideal solution for meeting reliable measurement needs in various applications.

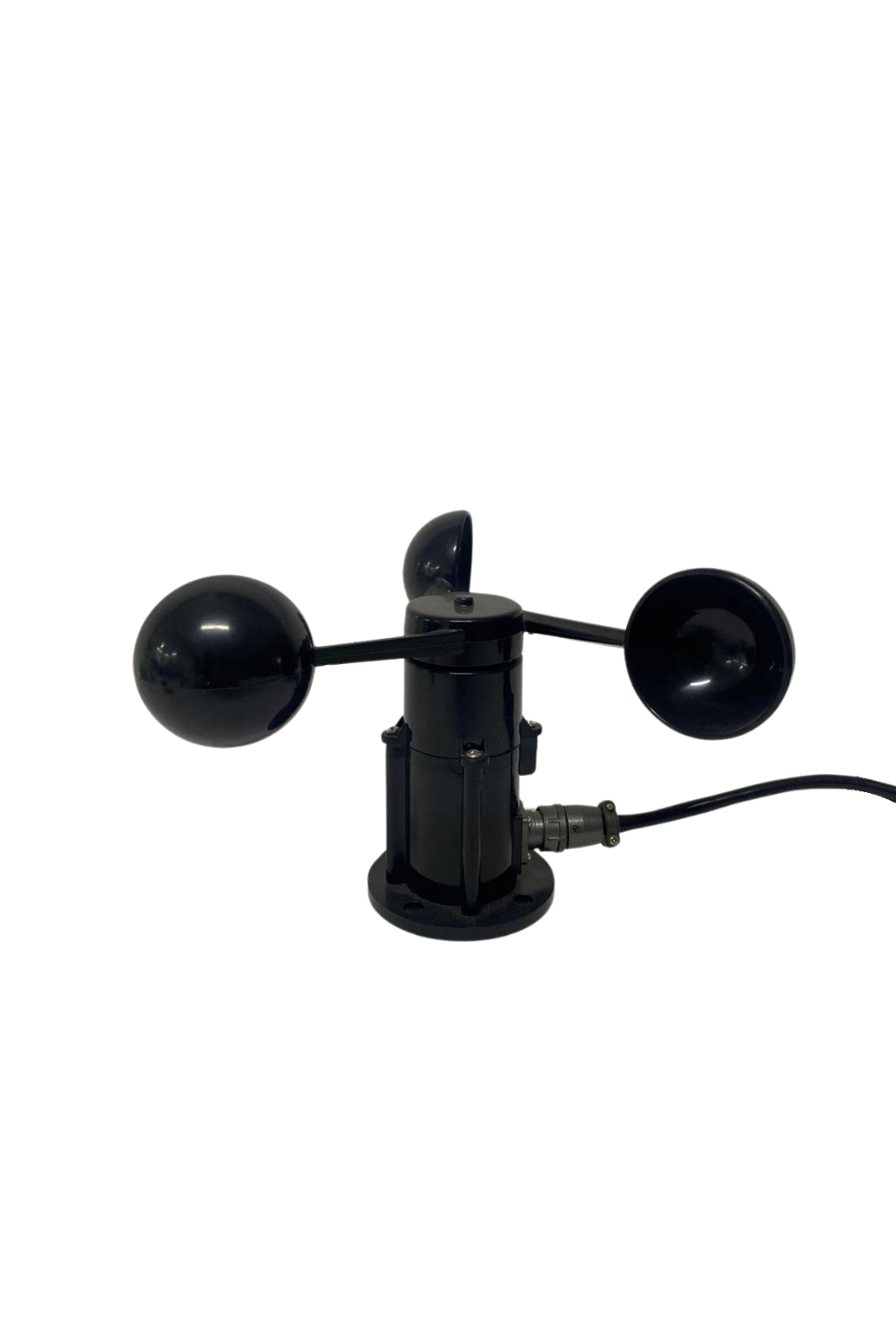

Wind Speed Sensor
Features
- Supply voltage: DC 12-24V
- Wind speed measurement range: 0.2-32.4 m/s
- Output: analog voltage 0-5V
- Calculation of wind speed: Wind speed = (voltage / 5) * 32.4
- Cable length: approximately 1m
- Connection:
- Black: GND
- Brown: VCC
- Blue: + Output
Wind Direction Sensor
The Wind Direction Sensor is used to measure wind direction precisely. It offers a wide range of use thanks to its 4-20 mA output signal. It can measure wind direction in the range of 0-360°. Durable against harsh environmental conditions, this sensor provides superior protection against external factors with its IP65 protection class. It offers an ideal solution for weather stations and all applications where wind direction needs to be monitored.
Modeller
Technical Documents
Download the documents for detailed product information
Frequently Asked Questions
Sıkça Sorulan Sorular
Sensörler ayrı ayrı alınabilir mi?
Evet. Rüzgar hız ve yön sensörleri hem paket halinde hem de ayrı ayrı temin edilebilir; Smart Wind serisinde hız, yön ve kombine modeller bulunur.
Rüzgar yön sensörünün ölçüm aralığı nedir?
0-360° aralığında rüzgar yönü ölçümü yapar ve 4-20 mA çıkış sinyaliyle geniş bir kullanım alanı sunar.
Dış mekânda kullanıma uygun mu?
Evet. Zorlu hava koşullarına dayanıklı yapısı ve IP65 koruma sınıfı ile dış mekânlarda uzun ömürlü kullanım sağlar; ergonomik tasarımı kolay montaj imkânı sunar.
Hangi iletişim seçenekleri var?
Smart Wind serisinde GSM ve LoRa iletişimli modeller mevcuttur; yalnız hız (Smart Wind-Speed) veya yalnız yön (Smart Wind-Direction) ölçen varyantlar da sunulur.
