Electric Actuated Butterfly Valve
Electric Actuated Lug Type Butterfly Valve. Electric Actuators are a type of actuator that performs the opening and closing operations of valves with the help of an electric motor. The force generated by the motor is converted into circular motion through the gear mechanism inside the body. In this way, opening-clo...
Documents
Product description
Electric Actuated Lug Type Butterfly Valve
Electric Actuators are a type of actuator that performs the opening and closing operations of valves with the help of an electric motor. The force generated by the motor is converted into circular motion through the gear mechanism inside the body. In this way, a constant torque is obtained throughout the opening-closing process.
Electric actuators are generally produced with 24V DC and 220V AC supply options. As an application area; they are safely preferred in ball valves, butterfly valves, and all valve types requiring rotary motion.
Electric actuated lug type butterfly valves provide reliable and efficient control of fluids in pipelines. The disc inside the valve is rotated with the help of a shaft to open or close the passage of the fluid. Since the electric actuator performs this movement automatically, no manual intervention is required. It is one of the most preferred reliable valve solutions in industrial systems.
The “Lug” type design allows the pipeline to be dismantled from one side thanks to its suitability for flanged connections from both sides. This feature provides great convenience in maintenance and repair operations. While the disc is generally produced from stainless steel, GGG40.3 ductile iron is preferred as the body material. Thus, the product offers high strength, long life, and durability.
Electric Actuated Lug Type Butterfly Valve with EPDM Seal and Stainless Steel Disc
The electric actuated lug type butterfly valve with EPDM seal and stainless steel disc is a durable and long-lasting valve solution that provides reliable flow control in industrial liquid and gas lines. It is preferred in many sectors thanks to its high performance, easy installation, and superior sealing features.
Superior Sealing with EPDM Gasket
EPDM material provides high flexibility and sealing thanks to its elastomeric structure. It can be used safely in harsh conditions by showing resistance to ozone, steam, acid, and alkaline environments. These features enable long-term and safe operation in valve systems.
Easy Installation with Lug Type Connection
The lug type design offers practical integration into flanged pipe systems. While the valve is removed from one side for maintenance, the other side continues to remain in the system. In this way, there is no need to stop the entire line during maintenance, providing a significant time and cost advantage for businesses.
Durability with Stainless Steel Disc
The disc, which provides the opening-closing function of the valve, is made of stainless steel. It offers a long service life by showing high resistance to corrosion and chemicals. Also, since it does not undergo deformation, it always provides accurate and reliable flow control.
Wide Range of Applications
This valve type is used in many industries such as water treatment, power generation, chemical transfer, and food production. Thanks to its hygienic structure, it is also safely preferred in food and drinking water systems.
Reliable Sealing Performance
The EPDM gasket eliminates the risk of leakage by maintaining its form even under high pressure. The compatible structure of the gasket and body allows the system to operate uninterruptedly.
Expertise for Correct Valve Selection
Every application creates different technical requirements. Correct evaluation of factors such as pressure, temperature, fluid type, and valve diameter is critically important for the efficient operation of the system.
Usage Areas
Electric actuated lug type butterfly valves are used in a very wide range of applications:
- Water treatment plants: Liquid management with precise flow control
- Chemical industry: Safe transfer of acidic and basic liquids
- Power plants: Control of steam and hot water lines
- Food sector: Safe use thanks to its hygienic structure
- HVAC systems: Effective directing of air flow
- Fire lines: Safety with fast opening-closing advantage
Product Specifications
- Protection Class: IP67 – IP68
- Operating Time: 30 / 60 sec
- Ambient Temperature: -30 °C ~ +60 °C
- Electrical Connection: 1/2’’ water-protected
- Body: GGG40.3 ductile iron
- Disc: AISI316 / AISI304 / AL-BR
- Stem: SS 416 stainless steel
- Temperature Range: -10 °C ~ +110 °C
- Gasket Material: EPDM
- Diameter Range: DN25 (1”) – DN300 (12”)
Advantages

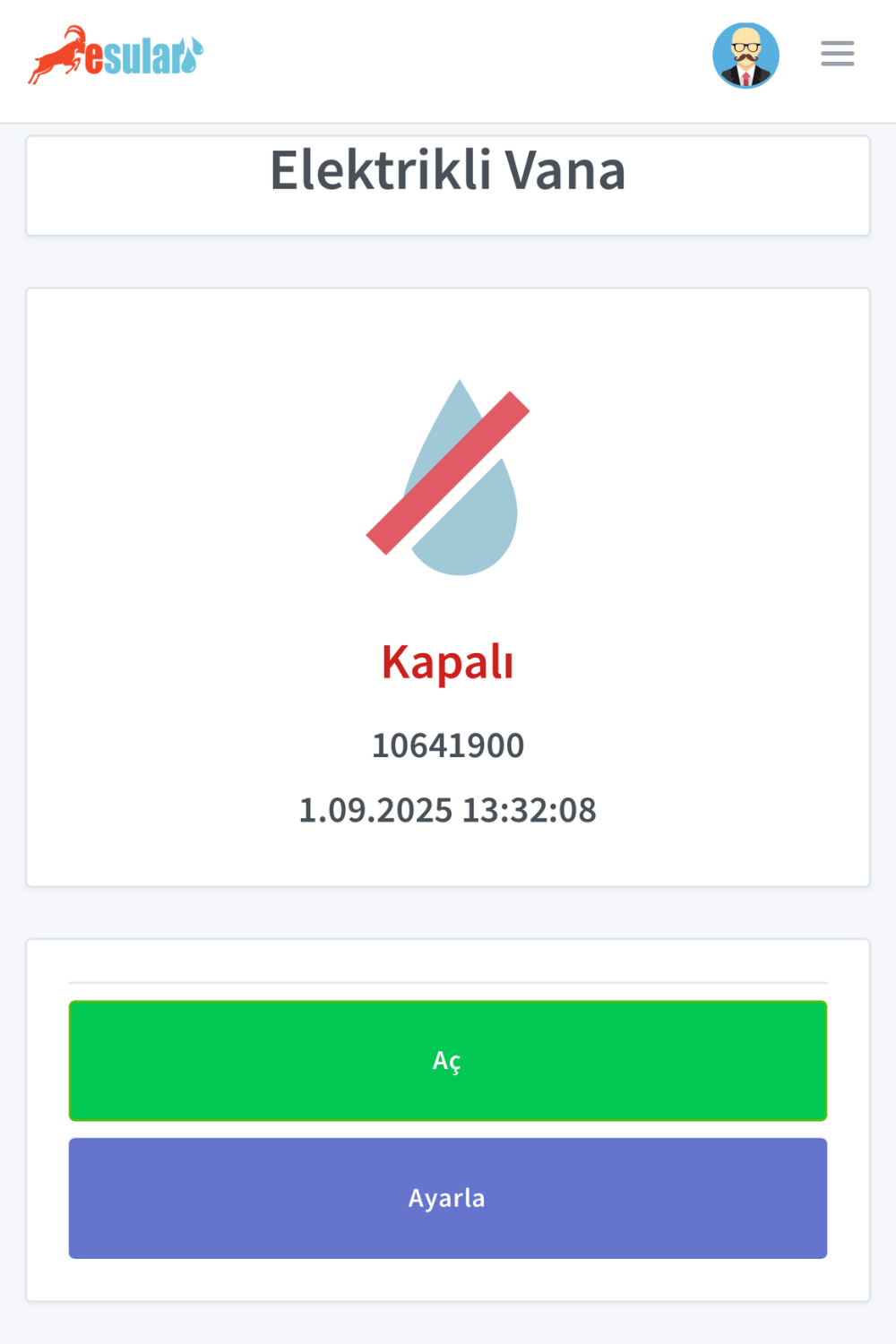

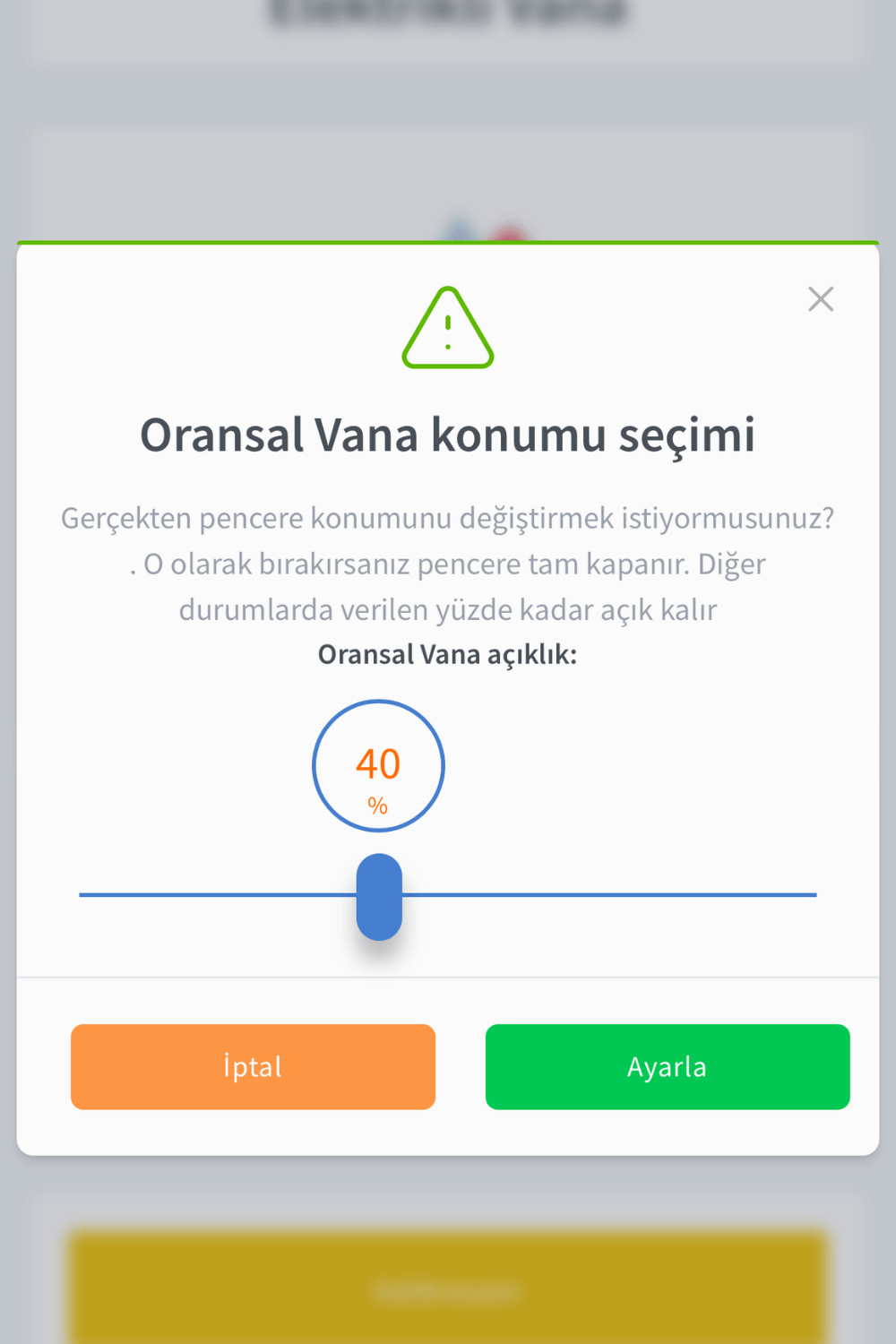

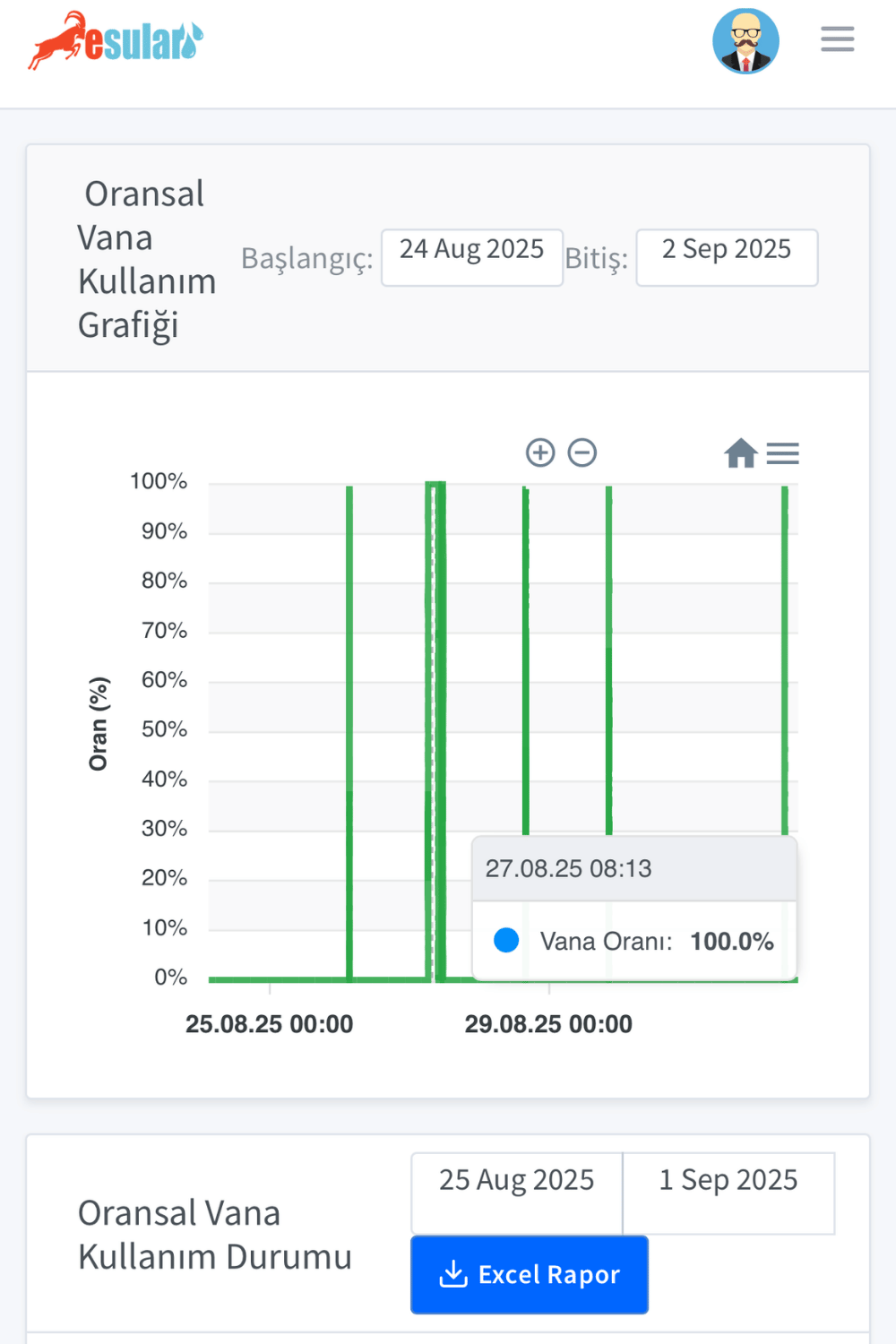

Electric actuated butterfly valves are fully compatible with modern automation systems. Thanks to the remote control and monitoring feature, the position of the valve can be tracked instantly and intervention can be made when necessary.
- Automation compatibility and remote control possibility
- High sealing and pressure resistance
- Fast response time in emergencies
- Economical and long-lasting use
With all these advantages, the electric actuated lug type butterfly valve offers a safe, durable, and efficient solution in industrial applications.
General Specifications
Technical Documents
Download the documents for detailed product information
Frequently Asked Questions
Sıkça Sorulan Sorular
Hangi besleme seçenekleri var?
Elektrikli aktüatörler genellikle 24V DC ve 220V AC besleme seçenekleriyle üretilir.
Lug tip tasarımın avantajı nedir?
Her iki taraftan flanşlı bağlantıya uygunluğu sayesinde boru hattı tek taraftan sökülebilir; bakım sırasında tüm hattın durmasına gerek kalmaz.
Malzeme yapısı nasıl?
Klape paslanmaz çelikten, gövde GGG40.3 pik dökümden üretilir; EPDM conta ozon, buhar, asit ve alkali ortamlara dirençli üstün sızdırmazlık sağlar.
Teknik değerleri nedir?
IP67-IP68 koruma sınıfı, 30/60 saniye hareket zamanı ve -30°C ile +60°C ortam sıcaklığı aralığında çalışma sunar.
Fiyat neden görünmüyor?
Bu ürün teklif usulü satılır; Teklif İste düğmesiyle bize ulaşın, ihtiyacınıza uygun yapılandırma ve fiyat bilgisi verelim.
